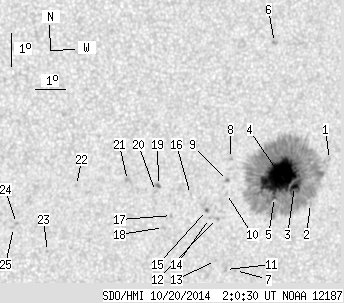

SDO HMI 2014-10-20 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.77 | 470.11 | 47.69 | 274.08 | -8.81 | 321.38 | 28.41 | 243.35 | 0.5282 | 771.8 | 342.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-20 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.77 | -8.34 | 323.23 | 30.27 | 245.60 | 0.5499 | -70.0 | -86.8 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -9.67 | 322.69 | 29.73 | 242.99 | 0.5508 | 15.0 | -5.4 | |
| 3.57 | 438.48 | 2.10 | 256.07 | -9.11 | 322.08 | 29.12 | 243.43 | 0.5394 | 678.8 | 375.8 | |
| 75.67 | -3.00 | 44.14 | -3.00 | -8.75 | 321.57 | 28.60 | 243.63 | 0.5302 | 1245.7 | 999999 | |
| 0.87 | -3.00 | 0.51 | -3.00 | -9.42 | 321.42 | 28.46 | 242.37 | 0.5327 | 748.6 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -4.67 | 321.10 | 28.14 | 250.63 | 0.5003 | 839.0 | 718.4 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -11.63 | 320.29 | 27.33 | 237.72 | 0.5340 | 666.0 | 604.1 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -8.14 | 319.81 | 26.85 | 243.22 | 0.5029 | 640.0 | 579.9 | |
| 0.35 | 1.74 | 0.20 | 1.00 | -8.82 | 319.76 | 26.80 | 241.97 | 0.5068 | 845.0 | 715.8 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -9.22 | 319.76 | 26.80 | 241.27 | 0.5095 | 574.0 | 539.5 | |
| 0.00 | 1.83 | 0.00 | 1.07 | -11.58 | 319.94 | 26.98 | 237.46 | 0.5293 | 694.0 | 584.0 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -9.98 | 319.48 | 26.52 | 239.70 | 0.5114 | 475.0 | 434.9 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -11.28 | 319.57 | 26.61 | 237.59 | 0.5224 | 628.0 | 556.9 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -9.97 | 319.25 | 26.28 | 239.50 | 0.5082 | -531.0 | -465.8 | |
| 0.70 | 1.83 | 0.40 | 1.05 | -9.71 | 319.12 | 26.16 | 239.82 | 0.5048 | -257.9 | -161.5 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -9.19 | 318.54 | 25.58 | 240.17 | 0.4933 | -446.0 | -417.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -9.82 | 317.95 | 24.99 | 238.48 | 0.4904 | -651.0 | -554.1 | |
| 0.00 | 1.83 | 0.00 | 1.04 | -10.18 | 317.72 | 24.75 | 237.60 | 0.4901 | -746.0 | -482.4 | |
| 0.61 | 2.00 | 0.34 | 1.13 | -8.87 | 317.45 | 24.49 | 239.66 | 0.4765 | -876.7 | -740.6 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -9.05 | 317.36 | 24.40 | 239.24 | 0.4767 | -799.0 | -672.2 | |
| 0.00 | 2.62 | 0.00 | 1.46 | -8.67 | 316.41 | 23.45 | 238.93 | 0.4612 | -859.0 | -741.0 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -8.76 | 314.74 | 21.78 | 236.84 | 0.4399 | -800.0 | -609.7 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -10.77 | 313.93 | 20.97 | 232.07 | 0.4476 | -679.0 | -514.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -9.87 | 312.87 | 19.91 | 232.29 | 0.4258 | -721.0 | -606.4 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -9.99 | 312.78 | 19.82 | 231.94 | 0.4259 | -714.0 | -523.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
