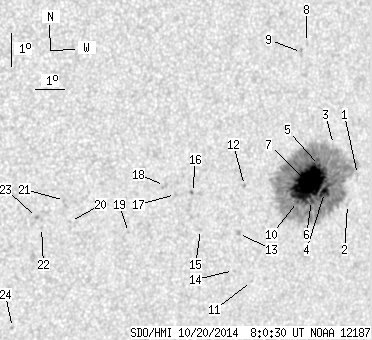

SDO HMI 2014-10-20 08:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.93 | 452.54 | 45.90 | 273.16 | -8.83 | 321.46 | 31.78 | 245.87 | 0.5724 | 783.9 | 315.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-20 08:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 1.02 | -8.62 | 323.36 | 33.69 | 247.47 | 0.5959 | -406.0 | -328.9 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -9.53 | 323.10 | 33.42 | 245.89 | 0.5973 | -442.0 | -308.3 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -7.65 | 322.41 | 32.73 | 248.43 | 0.5784 | 85.0 | 121.5 | |
| 5.75 | 426.31 | 3.50 | 257.88 | -9.11 | 322.22 | 32.54 | 245.97 | 0.5838 | 685.3 | 352.9 | |
| 0.26 | -4.00 | 0.16 | -4.00 | -8.27 | 321.96 | 32.28 | 247.15 | 0.5758 | 1060.0 | 999999 | |
| 2.09 | -4.00 | 1.27 | -4.00 | -9.33 | 321.78 | 32.10 | 245.32 | 0.5793 | 578.9 | 999999 | |
| 67.57 | -4.00 | 40.81 | -4.00 | -8.80 | 321.62 | 31.94 | 246.06 | 0.5742 | 1272.7 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.82 | -4.48 | 321.24 | 31.56 | 253.09 | 0.5475 | 573.0 | 442.2 | |
| 0.00 | 2.62 | 0.00 | 1.54 | -4.77 | 321.08 | 31.40 | 252.49 | 0.5466 | 671.0 | 536.2 | |
| 0.26 | -4.00 | 0.16 | -4.00 | -9.34 | 321.28 | 31.60 | 244.96 | 0.5729 | 816.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -11.75 | 319.91 | 30.24 | 240.13 | 0.5707 | 748.0 | 664.8 | |
| 0.00 | 1.48 | 0.00 | 0.87 | -8.75 | 319.36 | 29.68 | 244.53 | 0.5442 | 650.0 | 462.2 | |
| 0.00 | 1.74 | 0.00 | 1.03 | -10.22 | 319.29 | 29.61 | 242.04 | 0.5527 | 287.0 | 261.0 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -11.37 | 319.23 | 29.56 | 240.16 | 0.5597 | 512.0 | 434.2 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -10.03 | 317.95 | 28.27 | 241.24 | 0.5342 | -730.0 | -620.8 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -8.87 | 317.57 | 27.89 | 242.88 | 0.5214 | -798.0 | -675.6 | |
| 0.00 | 1.83 | 0.00 | 1.06 | -8.91 | 316.99 | 27.32 | 242.33 | 0.5140 | -656.0 | -560.5 | |
| 0.00 | 2.70 | 0.00 | 1.55 | -8.61 | 316.60 | 26.92 | 242.50 | 0.5067 | -683.0 | -714.5 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -10.01 | 315.49 | 25.81 | 239.02 | 0.5022 | -584.0 | -436.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -9.59 | 313.52 | 23.84 | 237.73 | 0.4734 | -827.0 | -668.7 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -8.93 | 313.27 | 23.60 | 238.67 | 0.4649 | -751.0 | -594.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -9.74 | 312.57 | 22.90 | 236.39 | 0.4623 | -736.0 | -619.0 | |
| 0.00 | 1.48 | 0.00 | 0.82 | -9.42 | 312.39 | 22.71 | 236.76 | 0.4572 | -952.0 | -811.6 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -12.83 | 311.87 | 22.19 | 230.19 | 0.4814 | -768.0 | -704.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
