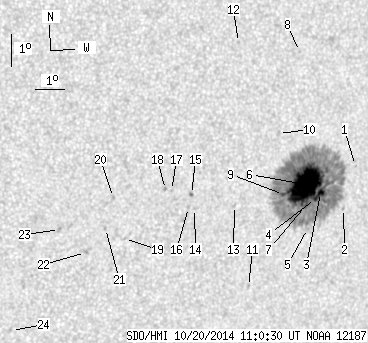

SDO HMI 2014-10-20 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.30 | 436.70 | 47.60 | 268.73 | -8.83 | 321.47 | 33.43 | 246.97 | 0.5938 | 768.7 | 306.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-20 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.33 | -8.29 | 323.45 | 35.41 | 248.99 | 0.6165 | -150.0 | -290.7 | |
| 0.00 | 1.13 | 0.00 | 0.71 | -9.60 | 323.15 | 35.11 | 246.84 | 0.6191 | -108.0 | -166.1 | |
| 2.96 | 414.40 | 1.84 | 255.53 | -9.05 | 322.24 | 34.20 | 247.12 | 0.6047 | 734.3 | 338.8 | |
| 1.31 | -3.00 | 0.81 | -3.00 | -9.23 | 322.07 | 34.04 | 246.75 | 0.6036 | 649.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -10.14 | 321.89 | 33.85 | 245.23 | 0.6061 | -44.0 | -44.2 | |
| 68.67 | -3.00 | 42.28 | -3.00 | -8.77 | 321.66 | 33.62 | 247.20 | 0.5959 | 1233.4 | 999999 | |
| 2.09 | -3.00 | 1.29 | -3.00 | -9.42 | 321.73 | 33.69 | 246.24 | 0.6002 | 680.5 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -4.69 | 321.13 | 33.09 | 253.55 | 0.5696 | 660.0 | 757.5 | |
| 1.92 | -3.00 | 1.17 | -3.00 | -9.04 | 320.89 | 32.86 | 246.30 | 0.5874 | 989.2 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.26 | -7.15 | 320.54 | 32.50 | 249.12 | 0.5729 | 680.0 | 526.4 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -11.84 | 319.96 | 31.92 | 241.31 | 0.5921 | 645.0 | 568.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -4.30 | 318.95 | 30.92 | 253.07 | 0.5377 | 682.0 | 509.5 | |
| 0.00 | 1.39 | 0.00 | 0.84 | -9.29 | 319.17 | 31.13 | 244.72 | 0.5664 | 615.0 | 521.6 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -9.31 | 317.76 | 29.73 | 243.64 | 0.5482 | -623.0 | -537.4 | |
| 0.35 | 1.74 | 0.21 | 1.03 | -8.87 | 317.62 | 29.58 | 244.26 | 0.5436 | -752.8 | -614.6 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -9.27 | 317.55 | 29.51 | 243.55 | 0.5452 | -739.0 | -557.6 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -8.71 | 316.91 | 28.87 | 243.98 | 0.5333 | -692.0 | -592.5 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -8.67 | 316.70 | 28.66 | 243.88 | 0.5302 | -906.0 | -713.7 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -10.12 | 315.42 | 27.38 | 240.33 | 0.5232 | -527.0 | -427.6 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -8.84 | 314.94 | 26.90 | 242.11 | 0.5079 | -669.0 | -574.0 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -9.78 | 314.74 | 26.71 | 240.28 | 0.5120 | -697.0 | -541.7 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -10.50 | 314.13 | 26.09 | 238.47 | 0.5093 | -638.0 | -625.9 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -9.75 | 313.19 | 25.15 | 238.84 | 0.4915 | -742.0 | -607.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -12.83 | 311.86 | 23.82 | 232.16 | 0.5006 | -705.0 | -500.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
