SDO HMI 2014-10-20 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.52 | 440.46 | 47.48 | 272.75 | -8.85 | 321.51 | 34.02 | 247.30 | 0.6013 | 708.6 | 314.7 | |
|
previous
or next observation for the same group /

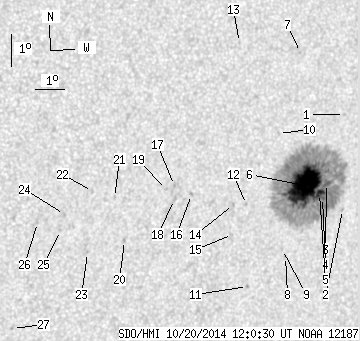

back to the solar disc SDO HMI 2014-10-20 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.60 | -6.71 | 322.93 | 35.44 | 251.46 | 0.6097 | 377.0 | 369.0 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -9.63 | 323.16 | 35.67 | 247.12 | 0.6262 | -118.0 | -167.0 | |
| 2.88 | 415.38 | 1.80 | 257.86 | -8.79 | 322.46 | 34.98 | 247.98 | 0.6133 | -256.8 | 348.7 | |
| 1.66 | -3.00 | 1.04 | -3.00 | -9.22 | 322.36 | 34.87 | 247.28 | 0.6142 | 487.9 | 999999 | |
| 4.62 | -3.00 | 2.89 | -3.00 | -9.09 | 322.24 | 34.75 | 247.40 | 0.6119 | 726.0 | 999999 | |
| 67.36 | -3.00 | 41.75 | -3.00 | -8.81 | 321.66 | 34.17 | 247.48 | 0.6030 | 1217.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -4.73 | 321.19 | 33.70 | 253.79 | 0.5780 | 824.0 | 621.7 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -10.98 | 321.22 | 33.73 | 243.90 | 0.6092 | 521.0 | 369.0 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -10.75 | 321.08 | 33.59 | 244.14 | 0.6062 | 484.0 | 390.7 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -7.16 | 320.56 | 33.07 | 249.45 | 0.5804 | 609.0 | 518.8 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -11.84 | 319.94 | 32.45 | 241.71 | 0.5987 | 730.0 | 593.6 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -9.28 | 319.61 | 32.12 | 245.43 | 0.5792 | 598.0 | 465.0 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -4.31 | 319.00 | 31.51 | 253.39 | 0.5459 | 580.0 | 462.0 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -9.26 | 319.14 | 31.65 | 245.15 | 0.5730 | 660.0 | 494.3 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -10.19 | 319.20 | 31.71 | 243.71 | 0.5793 | 627.0 | 533.5 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -8.87 | 317.62 | 30.13 | 244.68 | 0.5509 | -815.0 | -704.2 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -8.56 | 317.00 | 29.51 | 244.73 | 0.5408 | -739.0 | -648.2 | |
| 0.00 | 2.61 | 0.00 | 1.54 | -9.00 | 317.04 | 29.55 | 244.03 | 0.5440 | -693.0 | -596.5 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -8.67 | 316.73 | 29.25 | 244.34 | 0.5379 | -923.0 | -742.1 | |
| 0.00 | 1.48 | 0.00 | 0.86 | -10.18 | 315.42 | 27.93 | 240.71 | 0.5307 | -751.0 | -554.5 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -8.84 | 314.96 | 27.47 | 242.61 | 0.5154 | -615.0 | -518.4 | |
| 0.00 | 1.48 | 0.00 | 0.85 | -8.62 | 314.20 | 26.71 | 242.33 | 0.5038 | -698.0 | -511.9 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -10.50 | 314.18 | 26.70 | 239.06 | 0.5171 | -663.0 | -585.5 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -9.28 | 313.30 | 25.81 | 240.32 | 0.4967 | -833.0 | -691.5 | |
| 0.00 | 1.48 | 0.00 | 0.85 | -9.77 | 313.21 | 25.72 | 239.36 | 0.4990 | -715.0 | -573.8 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -9.49 | 312.41 | 24.92 | 239.07 | 0.4866 | -749.0 | -721.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -12.77 | 311.87 | 24.38 | 232.91 | 0.5067 | -719.0 | -504.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
