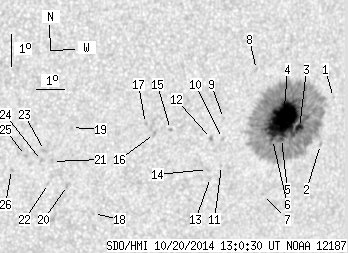

SDO HMI 2014-10-20 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.40 | 462.46 | 43.96 | 288.15 | -8.88 | 321.42 | 34.48 | 247.54 | 0.6075 | 704.4 | 286.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-20 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.55 | -8.21 | 323.49 | 36.55 | 249.74 | 0.6306 | -536.0 | -454.0 | |
| 0.00 | 1.74 | 0.00 | 1.11 | -9.63 | 323.17 | 36.23 | 247.44 | 0.6332 | -142.0 | -143.4 | |
| 4.27 | 431.61 | 2.69 | 269.79 | -9.06 | 322.31 | 35.37 | 247.81 | 0.6197 | 580.1 | 327.2 | |
| 62.82 | -3.00 | 39.20 | -3.00 | -8.78 | 321.69 | 34.75 | 247.88 | 0.6104 | 1254.0 | 999999 | |
| 3.05 | -3.00 | 1.91 | -3.00 | -9.36 | 321.68 | 34.74 | 246.98 | 0.6132 | 778.5 | 999999 | |
| 0.26 | -3.00 | 0.16 | -3.00 | -9.38 | 321.35 | 34.41 | 246.76 | 0.6091 | 894.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -11.07 | 321.19 | 34.25 | 244.11 | 0.6162 | 498.0 | 366.8 | |
| 0.00 | 1.66 | 0.00 | 1.01 | -7.18 | 320.55 | 33.61 | 249.72 | 0.5878 | 698.0 | 563.1 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -8.63 | 319.49 | 32.55 | 246.76 | 0.5812 | 408.0 | 288.5 | |
| 0.00 | 1.57 | 0.00 | 0.96 | -9.24 | 319.52 | 32.58 | 245.80 | 0.5849 | 340.0 | 352.9 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -10.08 | 319.58 | 32.63 | 244.53 | 0.5903 | -594.0 | -519.2 | |
| 0.00 | 1.66 | 0.00 | 1.00 | -9.22 | 319.12 | 32.18 | 245.57 | 0.5797 | 702.0 | 595.2 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -10.43 | 319.22 | 32.28 | 243.73 | 0.5879 | 599.0 | 475.4 | |
| 0.00 | 1.83 | 0.00 | 1.12 | -10.18 | 319.08 | 32.14 | 244.03 | 0.5846 | 524.0 | 464.4 | |
| 0.00 | 1.39 | 0.00 | 0.83 | -8.87 | 317.63 | 30.69 | 245.10 | 0.5582 | -825.0 | -657.4 | |
| 0.00 | 1.74 | 0.00 | 1.03 | -8.96 | 317.08 | 30.14 | 244.54 | 0.5515 | -687.0 | -604.4 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -8.64 | 316.74 | 29.80 | 244.82 | 0.5450 | -637.0 | -611.5 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -11.35 | 315.20 | 28.25 | 239.09 | 0.5431 | -683.0 | -538.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -8.64 | 314.19 | 27.25 | 242.77 | 0.5112 | -671.0 | -536.7 | |
| 0.00 | 2.35 | 0.00 | 1.37 | -10.43 | 314.21 | 27.27 | 239.71 | 0.5239 | -697.0 | -572.9 | |
| 0.00 | 1.66 | 0.00 | 0.95 | -9.66 | 313.63 | 26.69 | 240.48 | 0.5108 | -660.0 | -618.4 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -10.34 | 313.55 | 26.61 | 239.25 | 0.5148 | -663.0 | -535.2 | |
| 0.00 | 2.70 | 0.00 | 1.55 | -9.31 | 313.33 | 26.39 | 240.82 | 0.5044 | -814.0 | -557.5 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -9.61 | 313.25 | 26.31 | 240.21 | 0.5056 | -780.0 | -655.0 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -9.44 | 312.70 | 25.76 | 240.00 | 0.4970 | -781.0 | -714.8 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -9.85 | 312.26 | 25.32 | 238.84 | 0.4944 | -673.0 | -594.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
