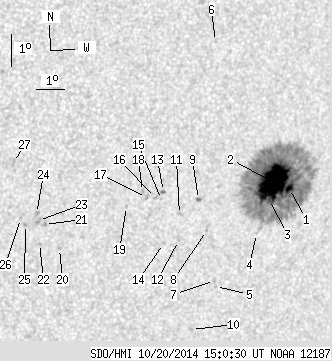

SDO HMI 2014-10-20 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.81 | 451.61 | 44.85 | 285.05 | -8.88 | 321.33 | 35.49 | 248.10 | 0.6203 | 657.7 | 265.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-20 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.35 | 417.20 | 2.78 | 264.55 | -9.03 | 322.33 | 36.49 | 248.47 | 0.6336 | 549.2 | 324.5 | |
| 66.20 | -1.00 | 41.90 | -1.00 | -8.81 | 321.70 | 35.86 | 248.46 | 0.6247 | 1244.7 | 999999 | |
| 0.26 | -1.00 | 0.17 | -1.00 | -9.33 | 321.61 | 35.77 | 247.63 | 0.6260 | 776.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -10.36 | 321.26 | 35.41 | 245.89 | 0.6268 | 523.0 | 454.4 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -11.93 | 319.95 | 34.11 | 242.74 | 0.6194 | 564.0 | 517.1 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -4.38 | 319.23 | 33.39 | 254.23 | 0.5723 | 434.0 | 341.7 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -11.74 | 319.88 | 34.04 | 242.98 | 0.6175 | 510.0 | 426.8 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -10.16 | 319.39 | 33.55 | 245.01 | 0.6023 | -493.0 | -431.2 | |
| 0.00 | 1.92 | 0.00 | 1.18 | -9.18 | 318.99 | 33.15 | 246.27 | 0.5919 | 834.0 | 700.9 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -13.24 | 319.26 | 33.42 | 240.36 | 0.6191 | 622.0 | 467.8 | |
| 0.00 | 1.92 | 0.00 | 1.17 | -9.61 | 318.35 | 32.51 | 245.17 | 0.5860 | -672.0 | -463.3 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -10.42 | 318.40 | 32.56 | 243.96 | 0.5914 | -390.0 | -331.6 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -8.87 | 317.70 | 31.86 | 245.92 | 0.5734 | -769.0 | -623.6 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -10.48 | 317.87 | 32.03 | 243.48 | 0.5850 | -612.0 | -444.9 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -9.11 | 317.65 | 31.81 | 245.49 | 0.5742 | -705.0 | -553.6 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -9.04 | 317.43 | 31.59 | 245.46 | 0.5709 | -597.0 | -610.1 | |
| 0.00 | 2.35 | 0.00 | 1.41 | -9.02 | 317.11 | 31.27 | 245.26 | 0.5666 | -746.0 | -625.8 | |
| 0.00 | 1.74 | 0.00 | 1.04 | -8.83 | 316.95 | 31.11 | 245.46 | 0.5634 | -765.0 | -616.5 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -9.26 | 316.43 | 30.59 | 244.37 | 0.5591 | -682.0 | -527.1 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -10.45 | 314.21 | 28.37 | 240.65 | 0.5381 | -659.0 | -545.9 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -9.68 | 313.62 | 27.78 | 241.43 | 0.5252 | -588.0 | -591.0 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -10.26 | 313.50 | 27.66 | 240.34 | 0.5277 | -591.0 | -523.1 | |
| 0.00 | 2.79 | 0.00 | 1.62 | -9.55 | 313.40 | 27.56 | 241.47 | 0.5214 | -815.0 | -686.0 | |
| 0.00 | 2.35 | 0.00 | 1.36 | -9.33 | 313.31 | 27.47 | 241.77 | 0.5188 | -845.0 | -636.2 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -9.65 | 312.97 | 27.13 | 240.90 | 0.5165 | -773.0 | -673.3 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -9.46 | 312.78 | 26.94 | 241.07 | 0.5127 | -817.0 | -640.5 | |
| 0.00 | 3.14 | 0.00 | 1.79 | -7.72 | 312.41 | 26.57 | 243.83 | 0.4959 | -615.0 | -569.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
