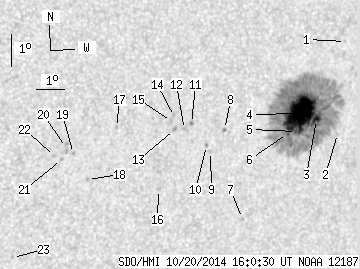

SDO HMI 2014-10-20 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.37 | 446.43 | 43.61 | 284.30 | -8.90 | 321.46 | 36.17 | 248.47 | 0.6288 | 703.2 | 275.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-20 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.39 | -6.70 | 323.21 | 37.91 | 252.66 | 0.6416 | 570.0 | 501.6 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -9.52 | 323.21 | 37.92 | 248.52 | 0.6536 | -203.0 | -166.6 | |
| 3.14 | 421.00 | 2.02 | 268.97 | -9.04 | 322.35 | 37.06 | 248.77 | 0.6407 | 606.8 | 322.3 | |
| 63.58 | -3.00 | 40.53 | -3.00 | -8.82 | 321.72 | 36.43 | 248.76 | 0.6318 | 1244.9 | 999999 | |
| 0.26 | -3.00 | 0.17 | -3.00 | -9.36 | 321.63 | 36.34 | 247.90 | 0.6333 | 721.0 | 999999 | |
| 1.39 | -3.00 | 0.89 | -3.00 | -9.41 | 321.30 | 36.01 | 247.65 | 0.6294 | 902.1 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.99 | -11.96 | 319.96 | 34.67 | 243.07 | 0.6264 | 581.0 | 510.7 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -9.15 | 318.94 | 33.65 | 246.64 | 0.5982 | 772.0 | 697.0 | |
| 0.00 | 1.39 | 0.00 | 0.86 | -9.80 | 318.51 | 33.21 | 245.35 | 0.5961 | -472.0 | -306.6 | |
| 0.00 | 1.48 | 0.00 | 0.91 | -9.61 | 318.34 | 33.05 | 245.54 | 0.5929 | -643.0 | -499.5 | |
| 0.00 | 1.65 | 0.00 | 1.01 | -8.90 | 317.72 | 32.43 | 246.25 | 0.5811 | -724.0 | -588.8 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -9.07 | 317.49 | 32.20 | 245.82 | 0.5790 | -781.0 | -654.9 | |
| 0.00 | 1.92 | 0.00 | 1.16 | -9.05 | 317.13 | 31.84 | 245.61 | 0.5742 | -721.0 | -623.8 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -8.65 | 317.09 | 31.80 | 246.23 | 0.5715 | -712.0 | -690.0 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -8.80 | 317.00 | 31.71 | 245.93 | 0.5711 | -809.0 | -572.5 | |
| 0.00 | 1.48 | 0.00 | 0.90 | -10.89 | 316.76 | 31.47 | 242.44 | 0.5804 | -780.0 | -562.7 | |
| 0.00 | 1.39 | 0.00 | 0.82 | -8.89 | 315.07 | 29.78 | 244.40 | 0.5463 | -609.0 | -496.8 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -10.45 | 314.21 | 28.92 | 241.13 | 0.5452 | -643.0 | -567.1 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -9.62 | 313.65 | 28.36 | 242.03 | 0.5323 | -768.0 | -635.5 | |
| 0.00 | 3.31 | 0.00 | 1.93 | -9.42 | 313.39 | 28.10 | 242.15 | 0.5276 | -565.0 | -701.1 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -9.78 | 313.25 | 27.96 | 241.41 | 0.5283 | -632.0 | -485.6 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -9.68 | 313.00 | 27.71 | 241.37 | 0.5243 | -800.0 | -685.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -12.77 | 311.87 | 26.58 | 235.25 | 0.5333 | -655.0 | -528.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
