SDO HMI 2014-10-20 18:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.88 | 412.04 | 44.62 | 266.25 | -8.90 | 321.51 | 37.32 | 249.09 | 0.6434 | 745.9 | 313.6 | |
|
previous
or next observation for the same group /

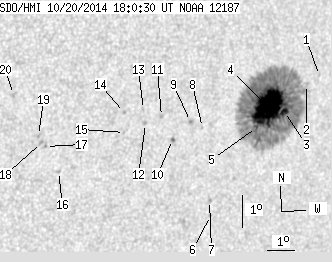

back to the solar disc SDO HMI 2014-10-20 18:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.69 | -7.98 | 323.62 | 39.44 | 251.47 | 0.6658 | -525.0 | -425.5 | |
| 0.00 | 1.39 | 0.00 | 0.92 | -8.23 | 323.14 | 38.96 | 250.90 | 0.6608 | 49.0 | 58.1 | |
| 4.09 | 387.59 | 2.68 | 251.25 | -9.01 | 322.39 | 38.20 | 249.40 | 0.6548 | 601.2 | 356.7 | |
| 63.74 | -3.00 | 41.27 | -3.00 | -8.85 | 321.75 | 37.56 | 249.31 | 0.6462 | 1209.1 | 999999 | |
| 0.70 | -3.00 | 0.45 | -3.00 | -9.44 | 321.37 | 37.18 | 248.25 | 0.6441 | 934.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -12.09 | 319.99 | 35.81 | 243.62 | 0.6409 | 672.0 | 503.0 | |
| 0.00 | 1.39 | 0.00 | 0.89 | -11.61 | 319.89 | 35.70 | 244.23 | 0.6370 | 535.0 | 503.6 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -9.32 | 319.32 | 35.14 | 247.28 | 0.6180 | 700.0 | 578.8 | |
| 0.00 | 1.74 | 0.00 | 1.09 | -9.11 | 318.86 | 34.67 | 247.32 | 0.6110 | 722.0 | 595.3 | |
| 0.35 | 1.48 | 0.22 | 0.92 | -9.63 | 318.25 | 34.07 | 246.16 | 0.6060 | -731.5 | -577.6 | |
| 0.00 | 1.83 | 0.00 | 1.13 | -8.90 | 317.77 | 33.59 | 247.00 | 0.5960 | -833.0 | -559.3 | |
| 0.00 | 1.74 | 0.00 | 1.07 | -9.08 | 317.21 | 33.02 | 246.35 | 0.5897 | -642.0 | -550.5 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -8.64 | 317.10 | 32.91 | 246.97 | 0.5859 | -801.0 | -646.2 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -8.70 | 316.42 | 32.23 | 246.44 | 0.5774 | -707.0 | -579.8 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -9.32 | 316.48 | 32.29 | 245.49 | 0.5816 | -716.0 | -532.3 | |
| 0.00 | 1.65 | 0.00 | 0.99 | -10.41 | 314.25 | 30.07 | 242.13 | 0.5596 | -628.0 | -538.7 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -9.61 | 313.72 | 29.53 | 243.01 | 0.5475 | -711.0 | -615.9 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -9.48 | 313.57 | 29.38 | 243.10 | 0.5447 | -831.0 | -659.6 | |
| 0.00 | 1.48 | 0.00 | 0.87 | -9.26 | 313.44 | 29.26 | 243.37 | 0.5417 | -832.0 | -682.8 | |
| 0.00 | 2.79 | 0.00 | 1.61 | -7.95 | 312.47 | 28.29 | 244.84 | 0.5206 | -718.0 | -544.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
