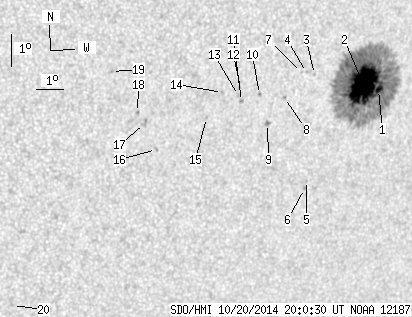

SDO HMI 2014-10-20 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.45 | 406.75 | 46.35 | 266.79 | -8.88 | 321.48 | 38.40 | 249.66 | 0.6567 | 741.4 | 303.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-20 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.22 | 382.19 | 2.14 | 251.63 | -9.02 | 322.37 | 39.29 | 249.93 | 0.6681 | 625.2 | 350.8 | |
| 67.23 | -1.00 | 44.21 | -1.00 | -8.82 | 321.76 | 38.68 | 249.91 | 0.6599 | 1172.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -8.40 | 319.84 | 36.75 | 249.56 | 0.6340 | 745.0 | 583.2 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -8.32 | 319.53 | 36.44 | 249.52 | 0.6297 | 213.0 | 154.3 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -11.68 | 319.97 | 36.88 | 244.85 | 0.6516 | 488.0 | 457.9 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -11.93 | 319.93 | 36.85 | 244.48 | 0.6524 | 710.0 | 643.9 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -8.31 | 319.34 | 36.25 | 249.43 | 0.6273 | -248.0 | -300.1 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -9.05 | 318.78 | 35.70 | 248.02 | 0.6237 | 692.0 | 537.4 | |
| 0.00 | 2.35 | 0.00 | 1.48 | -9.82 | 318.24 | 35.16 | 246.55 | 0.6208 | -704.0 | -590.2 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -8.90 | 317.84 | 34.76 | 247.70 | 0.6110 | -551.0 | -448.2 | |
| 0.00 | 1.83 | 0.00 | 1.13 | -9.08 | 317.20 | 34.11 | 247.04 | 0.6037 | -657.0 | -578.4 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -8.64 | 317.11 | 34.03 | 247.66 | 0.6004 | -757.0 | -644.3 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -8.89 | 317.07 | 33.98 | 247.26 | 0.6011 | -677.0 | -613.7 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -8.76 | 316.47 | 33.39 | 247.09 | 0.5927 | -803.0 | -642.9 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -9.50 | 315.97 | 32.89 | 245.60 | 0.5903 | -518.0 | -435.5 | |
| 0.00 | 1.92 | 0.00 | 1.16 | -10.40 | 314.28 | 31.20 | 243.00 | 0.5740 | -618.0 | -461.5 | |
| 0.00 | 3.31 | 0.00 | 1.98 | -9.57 | 313.77 | 30.68 | 243.95 | 0.5623 | -586.0 | -583.1 | |
| 0.00 | 1.39 | 0.00 | 0.83 | -9.22 | 313.49 | 30.40 | 244.31 | 0.5565 | -867.0 | -704.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -7.91 | 312.47 | 29.38 | 245.76 | 0.5351 | -702.0 | -614.1 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -15.08 | 309.81 | 26.73 | 231.88 | 0.5542 | -619.0 | -422.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
