SDO HMI 2014-10-20 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.67 | 420.91 | 44.87 | 278.32 | -8.92 | 321.47 | 38.94 | 249.88 | 0.6635 | 644.4 | 293.4 | |
|
previous
or next observation for the same group /

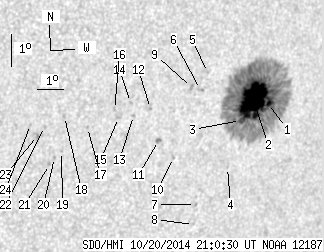

back to the solar disc SDO HMI 2014-10-20 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.44 | 391.97 | 1.63 | 260.25 | -8.99 | 322.37 | 39.84 | 250.22 | 0.6748 | 650.8 | 344.9 | |
| 63.66 | -1.00 | 42.20 | -1.00 | -8.86 | 321.76 | 39.23 | 250.12 | 0.6669 | 1152.8 | 999999 | |
| 1.57 | -1.00 | 1.04 | -1.00 | -9.45 | 321.33 | 38.80 | 249.07 | 0.6641 | 862.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -10.89 | 321.03 | 38.50 | 246.89 | 0.6670 | 445.0 | 355.0 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -7.89 | 319.88 | 37.35 | 250.62 | 0.6393 | -238.0 | -214.2 | |
| 0.00 | 2.53 | 0.00 | 1.62 | -8.40 | 319.67 | 37.14 | 249.76 | 0.6388 | 562.0 | 444.7 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -11.97 | 319.96 | 37.43 | 244.77 | 0.6596 | 675.0 | 697.3 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -12.60 | 319.99 | 37.46 | 243.92 | 0.6632 | 543.0 | 404.6 | |
| 0.00 | 2.18 | 0.00 | 1.39 | -8.32 | 319.32 | 36.79 | 249.71 | 0.6341 | -540.0 | -370.9 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -10.45 | 318.90 | 36.37 | 246.33 | 0.6390 | -582.0 | -502.0 | |
| 0.00 | 2.53 | 0.00 | 1.60 | -9.88 | 318.26 | 35.73 | 246.79 | 0.6283 | -741.0 | -617.8 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -8.87 | 317.84 | 35.31 | 248.06 | 0.6180 | -450.0 | -450.3 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -9.06 | 317.23 | 34.70 | 247.43 | 0.6111 | -708.0 | -611.9 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -8.65 | 317.08 | 34.55 | 247.97 | 0.6071 | -770.0 | -696.3 | |
| 0.00 | 1.83 | 0.00 | 1.13 | -9.09 | 316.69 | 34.16 | 247.06 | 0.6043 | -676.0 | -550.3 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -8.83 | 316.51 | 33.98 | 247.35 | 0.6007 | -779.0 | -619.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -9.33 | 315.59 | 33.06 | 245.98 | 0.5915 | -622.0 | -445.1 | |
| 0.00 | 1.39 | 0.00 | 0.84 | -8.95 | 314.72 | 32.19 | 246.02 | 0.5782 | -193.0 | -108.4 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -10.03 | 314.72 | 32.19 | 244.31 | 0.5844 | -627.0 | -534.1 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -10.20 | 314.49 | 31.96 | 243.88 | 0.5825 | -688.0 | -561.3 | |
| 0.00 | 1.39 | 0.00 | 0.85 | -10.41 | 314.34 | 31.81 | 243.44 | 0.5818 | -613.0 | -508.3 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -9.22 | 314.03 | 31.50 | 245.11 | 0.5708 | -584.0 | -470.1 | |
| 0.00 | 2.53 | 0.00 | 1.52 | -9.49 | 313.81 | 31.28 | 244.53 | 0.5695 | -878.0 | -682.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -9.13 | 313.53 | 31.00 | 244.89 | 0.5637 | -697.0 | -647.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
