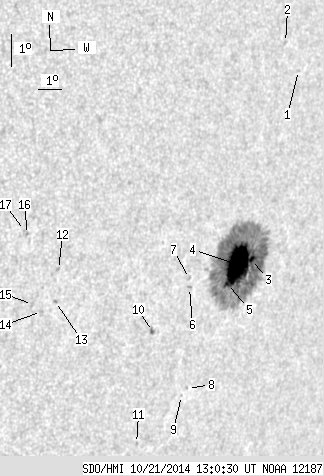

SDO HMI 2014-10-21 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.17 | 358.13 | 48.07 | 275.92 | -8.92 | 321.75 | 48.00 | 253.58 | 0.7675 | 731.0 | 233.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-21 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.96 | -3.17 | 324.06 | 50.31 | 261.51 | 0.7791 | -427.0 | -396.6 | |
| 0.00 | 1.48 | 0.00 | 1.14 | -2.28 | 323.40 | 49.65 | 262.51 | 0.7703 | 562.0 | 353.2 | |
| 3.13 | 339.16 | 2.45 | 262.36 | -8.81 | 322.56 | 48.81 | 254.00 | 0.7759 | 380.0 | 257.8 | |
| 57.21 | -3.00 | 44.21 | -3.00 | -8.91 | 321.94 | 48.19 | 253.66 | 0.7696 | 1010.3 | 999999 | |
| 1.83 | -3.00 | 1.41 | -3.00 | -9.47 | 321.58 | 47.83 | 252.84 | 0.7674 | 918.1 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.10 | -9.47 | 319.89 | 46.14 | 252.24 | 0.7491 | 694.0 | 582.7 | |
| 0.00 | 1.57 | 0.00 | 1.16 | -9.19 | 319.84 | 46.09 | 252.59 | 0.7477 | 614.0 | 505.6 | |
| 0.00 | 0.52 | 0.00 | 0.40 | -12.64 | 320.45 | 46.70 | 248.45 | 0.7658 | 501.0 | 418.5 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -12.85 | 320.23 | 46.48 | 248.11 | 0.7642 | 538.0 | 452.7 | |
| 0.00 | 2.44 | 0.00 | 1.78 | -10.74 | 318.51 | 44.76 | 250.08 | 0.7382 | -741.0 | -600.1 | |
| 0.00 | 1.04 | 0.00 | 0.78 | -14.24 | 318.59 | 44.84 | 245.67 | 0.7524 | 457.0 | 408.6 | |
| 0.00 | 1.31 | 0.00 | 0.88 | -8.55 | 314.29 | 40.53 | 251.24 | 0.6811 | -626.0 | -526.5 | |
| 0.00 | 1.22 | 0.00 | 0.83 | -9.53 | 314.30 | 40.55 | 249.88 | 0.6851 | -804.0 | -696.6 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -9.81 | 313.78 | 40.03 | 249.25 | 0.6801 | -456.0 | -395.3 | |
| 0.00 | 2.35 | 0.00 | 1.57 | -9.57 | 313.39 | 39.64 | 249.40 | 0.6744 | -494.0 | -456.3 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -7.39 | 312.93 | 39.18 | 252.30 | 0.6599 | -686.0 | -632.4 | |
| 0.00 | 1.39 | 0.00 | 0.91 | -7.26 | 312.80 | 39.05 | 252.43 | 0.6578 | -649.0 | -500.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
