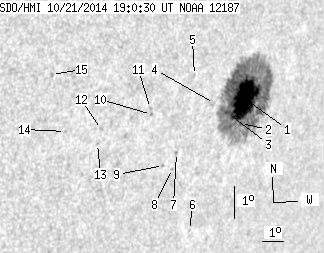

SDO HMI 2014-10-21 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.53 | 324.09 | 47.76 | 268.13 | -8.96 | 321.86 | 51.41 | 254.60 | 0.8030 | 669.5 | 251.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-21 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.26 | 310.70 | 45.89 | 258.03 | -8.92 | 322.06 | 51.61 | 254.71 | 0.8050 | 931.5 | 278.2 | |
| 0.96 | -1.00 | 0.80 | -1.00 | -9.65 | 321.96 | 51.51 | 253.80 | 0.8058 | 476.0 | 999999 | |
| 1.31 | -1.00 | 1.07 | -1.00 | -9.26 | 321.20 | 50.75 | 254.05 | 0.7972 | 727.7 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -8.93 | 320.56 | 50.12 | 254.25 | 0.7899 | 620.0 | 577.3 | |
| 0.00 | 1.13 | 0.00 | 0.88 | -7.99 | 319.47 | 49.02 | 255.08 | 0.7760 | -341.0 | -286.8 | |
| 0.00 | 0.61 | 0.00 | 0.50 | -12.84 | 320.27 | 49.83 | 249.40 | 0.7981 | 480.0 | 439.7 | |
| 0.00 | 1.39 | 0.00 | 1.09 | -10.33 | 319.07 | 48.62 | 252.04 | 0.7783 | -442.0 | -310.8 | |
| 0.00 | 0.87 | 0.00 | 0.68 | -10.82 | 318.98 | 48.54 | 251.41 | 0.7789 | -405.0 | -395.8 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -10.69 | 318.54 | 48.10 | 251.41 | 0.7739 | -701.0 | -504.1 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -9.06 | 317.69 | 47.24 | 253.16 | 0.7599 | -425.0 | -367.5 | |
| 0.00 | 1.13 | 0.00 | 0.86 | -8.87 | 317.61 | 47.17 | 253.38 | 0.7585 | -537.0 | -447.4 | |
| 0.00 | 1.74 | 0.00 | 1.27 | -9.37 | 315.55 | 45.10 | 251.99 | 0.7373 | -523.0 | -314.5 | |
| 0.00 | 1.04 | 0.00 | 0.76 | -9.80 | 315.45 | 45.00 | 251.40 | 0.7376 | -432.0 | -359.6 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -9.33 | 314.01 | 43.57 | 251.45 | 0.7197 | -496.0 | -522.7 | |
| 0.00 | 1.74 | 0.00 | 1.21 | -7.53 | 313.18 | 42.74 | 253.57 | 0.7038 | -691.0 | -601.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
