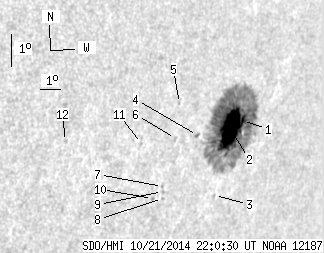

SDO HMI 2014-10-21 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.66 | 308.48 | 41.99 | 265.36 | -8.92 | 321.89 | 53.11 | 255.13 | 0.8195 | 670.5 | 276.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-21 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.44 | 295.69 | 2.13 | 255.07 | -8.69 | 322.57 | 53.78 | 255.58 | 0.8256 | 335.4 | 295.9 | |
| 46.22 | -1.00 | 39.86 | -1.00 | -8.90 | 321.99 | 53.21 | 255.19 | 0.8205 | 910.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.98 | -10.93 | 321.66 | 52.87 | 252.68 | 0.8222 | 298.0 | 269.2 | |
| 0.00 | 1.83 | 0.00 | 1.52 | -8.99 | 320.37 | 51.58 | 254.63 | 0.8048 | 783.0 | 711.0 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -7.93 | 319.31 | 50.52 | 255.61 | 0.7915 | -367.0 | -294.0 | |
| 0.00 | 1.48 | 0.00 | 1.20 | -9.00 | 319.31 | 50.52 | 254.30 | 0.7942 | -295.0 | -250.7 | |
| 0.00 | 0.87 | 0.00 | 0.71 | -10.45 | 318.99 | 50.20 | 252.42 | 0.7948 | -386.0 | -284.7 | |
| 0.00 | 1.13 | 0.00 | 0.92 | -10.83 | 319.07 | 50.29 | 251.99 | 0.7967 | -440.0 | -335.5 | |
| 0.00 | 1.39 | 0.00 | 1.13 | -10.61 | 319.02 | 50.24 | 252.24 | 0.7956 | -259.0 | -191.5 | |
| 0.00 | 1.31 | 0.00 | 1.05 | -10.79 | 318.59 | 49.80 | 251.88 | 0.7917 | -373.0 | -389.5 | |
| 0.00 | 0.87 | 0.00 | 0.68 | -9.03 | 317.72 | 48.93 | 253.76 | 0.7778 | -499.0 | -409.0 | |
| 0.00 | 2.00 | 0.00 | 1.47 | -8.73 | 314.27 | 45.48 | 252.98 | 0.7394 | -604.0 | -489.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
