SDO HMI 2014-10-22 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.95 | 294.68 | 50.14 | 268.48 | -8.93 | 321.97 | 55.39 | 255.73 | 0.8410 | 684.8 | 241.5 | |
|
previous
or next observation for the same group /

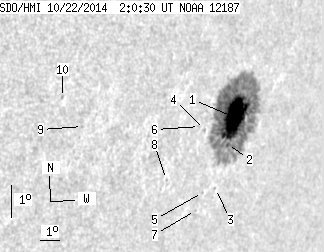

back to the solar disc SDO HMI 2014-10-22 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.64 | 287.88 | 48.95 | 262.76 | -8.90 | 322.05 | 55.47 | 255.79 | 0.8417 | 796.7 | 245.5 | |
| 1.31 | -1.00 | 1.19 | -1.00 | -9.71 | 321.87 | 55.28 | 254.80 | 0.8417 | 446.9 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.56 | -11.05 | 321.58 | 54.99 | 253.17 | 0.8420 | 397.0 | 379.6 | |
| 0.00 | 1.22 | 0.00 | 1.07 | -9.15 | 320.53 | 53.94 | 255.10 | 0.8281 | 557.0 | 553.5 | |
| 0.00 | 0.96 | 0.00 | 0.86 | -11.12 | 320.91 | 54.33 | 252.90 | 0.8361 | 391.0 | 349.2 | |
| 0.00 | 0.87 | 0.00 | 0.76 | -9.03 | 320.24 | 53.66 | 255.16 | 0.8251 | 623.0 | 557.4 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -11.66 | 320.69 | 54.11 | 252.21 | 0.8354 | -243.0 | -301.0 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -10.56 | 318.92 | 52.34 | 252.97 | 0.8161 | -224.0 | -278.1 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -8.61 | 314.54 | 47.95 | 254.00 | 0.7661 | -593.0 | -446.2 | |
| 0.00 | 1.22 | 0.00 | 0.91 | -7.65 | 313.49 | 46.91 | 254.89 | 0.7520 | -624.0 | -454.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
