SDO HMI 2014-10-22 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.38 | 288.60 | 49.43 | 266.71 | -8.92 | 322.03 | 56.00 | 255.91 | 0.8465 | 721.4 | 241.4 | |
|
previous
or next observation for the same group /

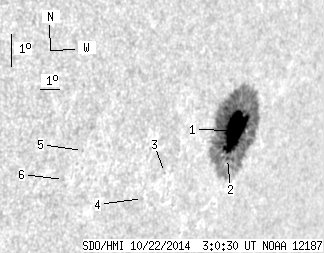

back to the solar disc SDO HMI 2014-10-22 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.16 | 285.46 | 48.30 | 264.18 | -8.89 | 322.09 | 56.06 | 255.96 | 0.8470 | 817.5 | 248.7 | |
| 1.22 | -1.00 | 1.13 | -1.00 | -9.73 | 321.86 | 55.83 | 254.93 | 0.8466 | 473.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.74 | -9.90 | 318.62 | 52.59 | 253.83 | 0.8168 | -329.0 | -346.5 | |
| 0.00 | 0.61 | 0.00 | 0.51 | -10.64 | 317.70 | 51.66 | 252.68 | 0.8097 | -215.0 | -227.1 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -8.92 | 314.50 | 48.46 | 253.77 | 0.7724 | -449.0 | -481.6 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -9.76 | 313.79 | 47.75 | 252.48 | 0.7673 | -480.0 | -433.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
