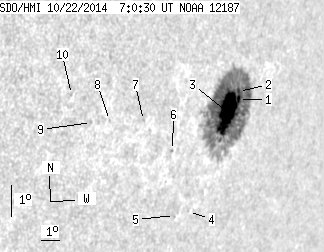

SDO HMI 2014-10-22 07:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.73 | 282.88 | 44.97 | 277.51 | -8.90 | 322.02 | 58.17 | 256.45 | 0.8653 | 703.9 | 213.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-22 07:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.09 | 277.82 | 2.08 | 273.08 | -8.57 | 322.60 | 58.75 | 256.97 | 0.8698 | 244.0 | 220.9 | |
| 1.31 | -1.00 | 1.30 | -1.00 | -8.32 | 322.54 | 58.69 | 257.23 | 0.8688 | 307.2 | 999999 | |
| 42.33 | -1.00 | 41.59 | -1.00 | -8.92 | 322.05 | 58.20 | 256.44 | 0.8657 | 898.0 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -11.86 | 320.67 | 56.83 | 252.77 | 0.8597 | -288.0 | -219.7 | |
| 0.00 | 1.05 | 0.00 | 0.99 | -11.92 | 319.92 | 56.07 | 252.49 | 0.8534 | 300.0 | 279.2 | |
| 0.00 | 0.87 | 0.00 | 0.80 | -9.86 | 319.22 | 55.38 | 254.67 | 0.8428 | -331.0 | -226.1 | |
| 0.00 | 0.96 | 0.00 | 0.83 | -8.80 | 317.46 | 53.61 | 255.45 | 0.8241 | -175.0 | -283.3 | |
| 0.00 | 0.70 | 0.00 | 0.58 | -8.67 | 315.72 | 51.88 | 255.13 | 0.8069 | -182.0 | -178.0 | |
| 0.00 | 0.52 | 0.00 | 0.43 | -8.67 | 314.85 | 51.00 | 254.88 | 0.7981 | -545.0 | -464.8 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -7.73 | 313.73 | 49.88 | 255.72 | 0.7842 | -455.0 | -365.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
