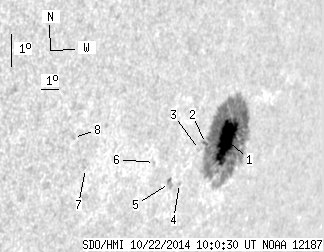

SDO HMI 2014-10-22 10:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.05 | 276.77 | 47.57 | 285.22 | -8.91 | 321.95 | 59.74 | 256.81 | 0.8783 | 684.9 | 155.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-22 10:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.01 | 265.11 | 46.53 | 274.32 | -8.89 | 322.11 | 59.90 | 256.87 | 0.8797 | 788.5 | 162.1 | |
| 1.04 | -1.00 | 1.04 | -1.00 | -8.87 | 320.85 | 58.64 | 256.60 | 0.8694 | 724.0 | 999999 | |
| 0.00 | 2.35 | 0.00 | 2.32 | -9.03 | 320.54 | 58.34 | 256.35 | 0.8670 | 406.0 | 421.2 | |
| 0.00 | 1.31 | 0.00 | 1.26 | -10.01 | 319.65 | 57.45 | 255.04 | 0.8613 | 393.0 | 389.9 | |
| 0.00 | 4.70 | 0.00 | 4.48 | -9.96 | 319.08 | 56.87 | 254.95 | 0.8562 | -193.0 | -91.3 | |
| 0.00 | 1.13 | 0.00 | 1.04 | -9.23 | 318.07 | 55.86 | 255.53 | 0.8458 | -402.0 | -333.7 | |
| 0.00 | 0.52 | 0.00 | 0.44 | -9.14 | 314.47 | 52.26 | 254.68 | 0.8118 | -540.0 | -571.7 | |
| 0.00 | 1.65 | 0.00 | 1.36 | -8.13 | 313.68 | 51.48 | 255.68 | 0.8016 | -419.0 | -267.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
