SDO HMI 2014-10-22 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.88 | 259.15 | 48.17 | 272.06 | -8.99 | 322.01 | 60.35 | 256.85 | 0.8834 | 665.1 | 169.8 | |
|
previous
or next observation for the same group /

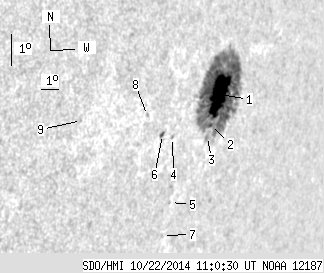

back to the solar disc SDO HMI 2014-10-22 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.61 | 247.32 | 45.88 | 260.28 | -8.90 | 322.11 | 60.45 | 256.97 | 0.8841 | 770.7 | 174.5 | |
| 1.31 | -1.00 | 1.37 | -1.00 | -9.83 | 321.82 | 60.16 | 255.87 | 0.8833 | 418.7 | 999999 | |
| 0.00 | 4.70 | 0.00 | 4.92 | -10.16 | 321.74 | 60.08 | 255.49 | 0.8832 | 172.0 | 167.8 | |
| 0.00 | 0.87 | 0.00 | 0.85 | -10.02 | 319.62 | 57.96 | 255.15 | 0.8656 | 497.0 | 417.9 | |
| 0.00 | 0.78 | 0.00 | 0.79 | -12.07 | 320.15 | 58.49 | 252.98 | 0.8739 | 366.0 | 355.8 | |
| 0.96 | 2.26 | 0.92 | 2.18 | -9.88 | 319.01 | 57.35 | 255.16 | 0.8602 | -414.5 | -251.7 | |
| 0.00 | 1.22 | 0.00 | 1.24 | -13.09 | 320.05 | 58.39 | 251.82 | 0.8751 | 350.0 | 281.5 | |
| 0.00 | 1.13 | 0.00 | 1.06 | -9.21 | 318.00 | 56.34 | 255.68 | 0.8501 | -302.0 | -248.5 | |
| 0.00 | 0.87 | 0.00 | 0.74 | -9.10 | 314.51 | 52.85 | 254.90 | 0.8173 | -604.0 | -526.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
