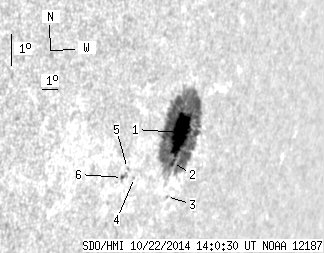

SDO HMI 2014-10-22 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.30 | 242.76 | 49.08 | 268.91 | -8.97 | 322.01 | 61.99 | 257.22 | 0.8961 | 692.3 | 165.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-22 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.90 | 236.07 | 45.39 | 262.02 | -8.88 | 322.09 | 62.07 | 257.33 | 0.8966 | 765.2 | 172.0 | |
| 2.70 | -1.00 | 2.99 | -1.00 | -9.78 | 321.85 | 61.83 | 256.29 | 0.8961 | 414.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.16 | -10.83 | 321.81 | 61.80 | 255.14 | 0.8974 | 102.0 | 161.1 | |
| 0.00 | 0.61 | 0.00 | 0.63 | -10.05 | 319.56 | 59.54 | 255.49 | 0.8787 | 473.0 | 414.4 | |
| 0.00 | 1.04 | 0.00 | 1.06 | -9.74 | 319.05 | 59.03 | 255.72 | 0.8740 | -225.0 | -131.8 | |
| 0.70 | 4.00 | 0.70 | 4.04 | -9.99 | 318.82 | 58.81 | 255.38 | 0.8727 | -386.6 | -197.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
