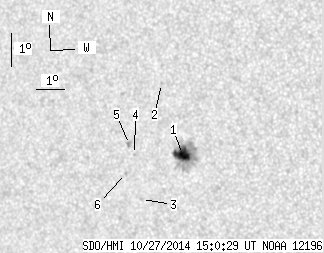

SDO HMI 2014-10-27 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.88 | 57.26 | 8.24 | 34.04 | -3.13 | 160.83 | -32.69 | 103.06 | 0.5558 | 907.3 | 492.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-27 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.88 | 50.41 | 8.24 | 29.89 | -3.14 | 161.03 | -32.49 | 103.17 | 0.5530 | 1049.1 | 480.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -1.04 | 160.34 | -33.19 | 99.19 | 0.5565 | 754.0 | 605.9 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -4.57 | 159.50 | -34.02 | 104.94 | 0.5795 | 449.0 | 379.4 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -3.22 | 159.31 | -34.21 | 102.60 | 0.5774 | 744.0 | 597.2 | |
| 0.00 | 2.52 | 0.00 | 1.53 | -2.93 | 159.14 | -34.38 | 102.04 | 0.5789 | 720.0 | 644.2 | |
| 0.00 | 1.39 | 0.00 | 0.85 | -3.81 | 158.96 | -34.57 | 103.45 | 0.5843 | 702.0 | 458.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
