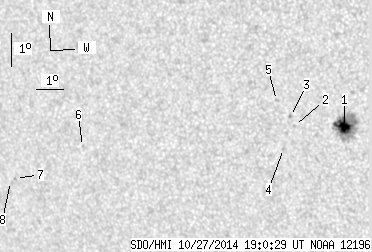

SDO HMI 2014-10-27 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.85 | 52.56 | 5.13 | 30.70 | -3.31 | 160.39 | -30.93 | 104.19 | 0.5308 | 611.1 | 539.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-27 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.85 | 45.97 | 5.13 | 26.62 | -3.23 | 161.10 | -30.22 | 104.35 | 0.5208 | 1285.9 | 610.0 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -3.24 | 159.35 | -31.96 | 103.57 | 0.5459 | 593.0 | 508.2 | |
| 0.00 | 1.30 | 0.00 | 0.77 | -2.98 | 159.22 | -32.10 | 103.04 | 0.5468 | 729.0 | 563.5 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -3.95 | 158.94 | -32.38 | 104.63 | 0.5544 | 448.0 | 426.5 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -2.52 | 158.74 | -32.58 | 102.02 | 0.5521 | 669.0 | 602.8 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -4.26 | 151.47 | -39.85 | 102.22 | 0.6562 | -655.0 | -558.9 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -5.38 | 148.71 | -42.61 | 102.95 | 0.6940 | -584.0 | -529.7 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -5.48 | 148.50 | -42.82 | 103.03 | 0.6969 | -384.0 | -419.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
