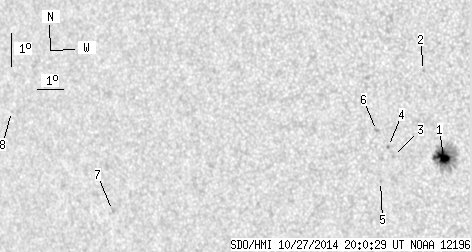

SDO HMI 2014-10-27 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.41 | 60.54 | 6.00 | 35.24 | -3.21 | 160.16 | -30.61 | 104.22 | 0.5255 | 746.1 | 449.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-27 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.41 | 51.96 | 6.00 | 29.91 | -3.20 | 161.10 | -29.67 | 104.59 | 0.5127 | 1255.8 | 516.2 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -0.62 | 160.46 | -30.30 | 99.38 | 0.5134 | 649.0 | 498.2 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -3.25 | 159.36 | -31.40 | 103.83 | 0.5379 | 611.0 | 495.3 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -2.95 | 159.20 | -31.57 | 103.22 | 0.5392 | 666.0 | 596.2 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -4.02 | 158.87 | -31.89 | 104.98 | 0.5477 | 754.0 | 552.8 | |
| 0.00 | 1.56 | 0.00 | 0.92 | -2.49 | 158.79 | -31.98 | 102.21 | 0.5435 | 729.0 | 562.5 | |
| 0.00 | 1.73 | 0.00 | 1.18 | -5.41 | 148.72 | -42.05 | 103.17 | 0.6871 | -749.0 | -622.0 | |
| 0.00 | 1.04 | 0.00 | 0.75 | -2.66 | 144.70 | -46.07 | 98.26 | 0.7293 | -495.0 | -423.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
