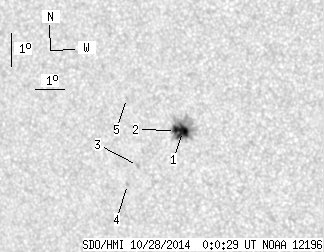

SDO HMI 2014-10-28 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.70 | 50.50 | 8.86 | 28.52 | -3.34 | 160.91 | -27.65 | 105.91 | 0.4838 | 1045.8 | 523.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-28 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.19 | 45.99 | 6.31 | 25.92 | -3.28 | 161.13 | -27.43 | 105.92 | 0.4803 | 1259.3 | 515.6 | |
| 4.51 | -1.00 | 2.55 | -1.00 | -3.26 | 160.89 | -27.67 | 105.74 | 0.4836 | 860.6 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -4.36 | 159.56 | -29.00 | 107.12 | 0.5078 | 866.0 | 623.0 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -4.95 | 159.19 | -29.37 | 108.00 | 0.5158 | 694.0 | 498.1 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -2.36 | 159.25 | -29.31 | 103.12 | 0.5042 | 702.0 | 591.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
