SDO HMI 2014-10-28 08:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.76 | 47.65 | 6.94 | 26.02 | -3.31 | 160.66 | -23.51 | 108.62 | 0.4214 | 820.9 | 481.0 | |
|
previous
or next observation for the same group /

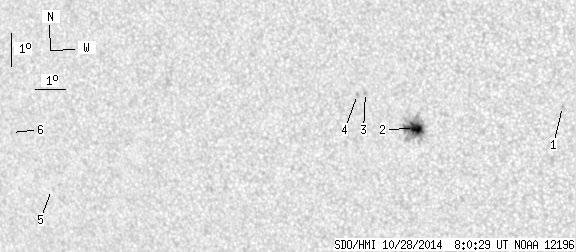

back to the solar disc SDO HMI 2014-10-28 08:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.64 | -2.53 | 165.87 | -18.30 | 111.34 | 0.3383 | 792.0 | 574.4 | |
| 12.76 | 42.53 | 6.94 | 23.13 | -3.33 | 161.13 | -23.04 | 108.92 | 0.4148 | 1198.7 | 514.8 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -2.30 | 159.55 | -24.62 | 105.47 | 0.4337 | 874.0 | 737.0 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -2.37 | 159.29 | -24.88 | 105.46 | 0.4380 | 811.0 | 705.0 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -5.68 | 148.53 | -35.64 | 105.93 | 0.6053 | -417.0 | -457.7 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -4.02 | 147.15 | -37.02 | 102.74 | 0.6181 | -577.0 | -457.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
