SDO HMI 2014-10-28 09:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.01 | 43.13 | 9.21 | 23.61 | -3.44 | 160.00 | -23.62 | 108.91 | 0.4234 | 808.2 | 445.7 | |
|
previous
or next observation for the same group /

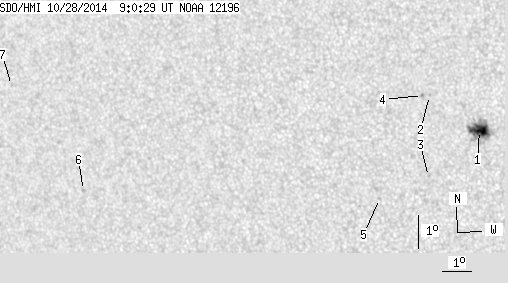

back to the solar disc SDO HMI 2014-10-28 09:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.01 | 36.97 | 9.21 | 20.03 | -3.35 | 161.13 | -22.49 | 109.40 | 0.4067 | 1111.1 | 529.9 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -2.35 | 159.53 | -24.10 | 105.91 | 0.4260 | 852.0 | 659.6 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -4.79 | 159.42 | -24.20 | 111.19 | 0.4400 | 855.0 | 670.2 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -2.35 | 159.30 | -24.33 | 105.77 | 0.4295 | 897.0 | 734.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -5.51 | 157.77 | -25.85 | 111.36 | 0.4680 | 667.0 | 543.1 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -5.71 | 147.39 | -36.24 | 105.72 | 0.6133 | -614.0 | -493.7 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -2.67 | 144.85 | -38.78 | 100.05 | 0.6377 | -597.0 | -443.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
