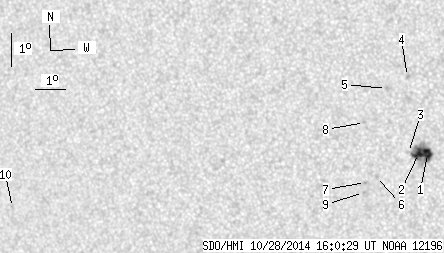

SDO HMI 2014-10-28 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.00 | 44.47 | 7.93 | 23.63 | -3.38 | 160.38 | -19.40 | 112.47 | 0.3600 | 898.2 | 558.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-28 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.63 | 32.52 | 4.03 | 17.18 | -3.42 | 161.32 | -18.47 | 113.51 | 0.3464 | 1340.9 | 621.9 | |
| 7.37 | -1.00 | 3.90 | -1.00 | -3.43 | 161.03 | -18.75 | 113.20 | 0.3507 | 1093.0 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -3.41 | 160.72 | -19.07 | 112.79 | 0.3553 | 415.0 | 351.0 | |
| 0.00 | 2.08 | 0.00 | 1.10 | -1.13 | 160.72 | -19.07 | 106.63 | 0.3424 | 817.0 | 661.5 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -1.51 | 160.06 | -19.73 | 107.09 | 0.3547 | 814.0 | 680.5 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -4.16 | 159.69 | -20.10 | 113.56 | 0.3756 | 739.0 | 593.1 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -4.35 | 159.33 | -20.46 | 113.65 | 0.3821 | 817.0 | 720.1 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -2.55 | 159.34 | -20.45 | 109.19 | 0.3711 | 786.0 | 584.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -4.65 | 159.26 | -20.53 | 114.30 | 0.3852 | 877.0 | 730.5 | |
| 0.00 | 1.47 | 0.00 | 0.88 | -5.53 | 147.46 | -32.32 | 107.27 | 0.5595 | -623.0 | -470.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
