SDO HMI 2014-10-28 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.73 | 42.13 | 8.78 | 22.17 | -3.35 | 160.79 | -17.90 | 114.17 | 0.3372 | 954.0 | 546.8 | |
|
previous
or next observation for the same group /

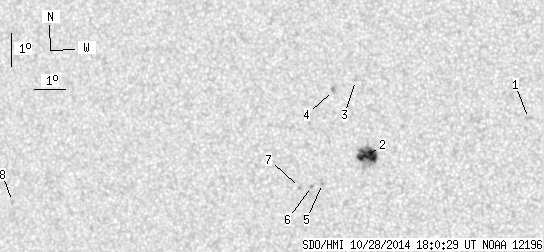

back to the solar disc SDO HMI 2014-10-28 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.69 | 0.00 | 1.37 | -2.22 | 166.15 | -12.54 | 118.74 | 0.2486 | 740.0 | 618.9 | |
| 16.73 | 30.08 | 8.78 | 15.79 | -3.43 | 161.16 | -17.53 | 114.68 | 0.3323 | 1235.6 | 572.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -1.19 | 160.81 | -17.87 | 107.91 | 0.3239 | 814.0 | 545.0 | |
| 0.00 | 2.69 | 0.00 | 1.41 | -1.51 | 160.12 | -18.57 | 108.15 | 0.3364 | 815.0 | 754.1 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -4.31 | 159.72 | -18.96 | 115.22 | 0.3598 | 925.0 | 781.9 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -4.41 | 159.37 | -19.31 | 115.06 | 0.3656 | 867.0 | 679.8 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -4.45 | 158.99 | -19.70 | 114.72 | 0.3715 | 748.0 | 592.4 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -5.19 | 149.52 | -29.16 | 108.44 | 0.5137 | -703.0 | -558.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
