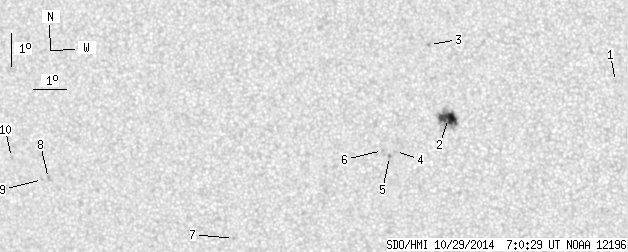

SDO HMI 2014-10-29 07:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.01 | 43.72 | 7.64 | 22.46 | -3.83 | 159.40 | -12.13 | 126.11 | 0.2572 | 765.6 | 393.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-29 07:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.43 | -2.35 | 166.15 | -5.39 | 142.40 | 0.1544 | 878.0 | 631.7 | |
| 15.01 | 32.19 | 7.64 | 16.38 | -3.52 | 161.11 | -10.42 | 127.96 | 0.2301 | 1220.5 | 534.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -1.30 | 160.55 | -10.98 | 118.27 | 0.2172 | 1116.0 | 847.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -4.53 | 159.48 | -12.05 | 127.20 | 0.2625 | 875.0 | 788.9 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -4.69 | 159.29 | -12.24 | 127.24 | 0.2666 | 1142.0 | 899.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -4.51 | 159.08 | -12.45 | 126.23 | 0.2676 | 824.0 | 649.3 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -7.27 | 154.38 | -17.15 | 124.78 | 0.3576 | 799.0 | 682.5 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -5.61 | 148.55 | -22.99 | 113.86 | 0.4267 | -747.0 | -635.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -5.65 | 148.35 | -23.18 | 113.75 | 0.4298 | -710.0 | -535.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -5.01 | 147.36 | -24.17 | 111.53 | 0.4403 | -763.0 | -596.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
