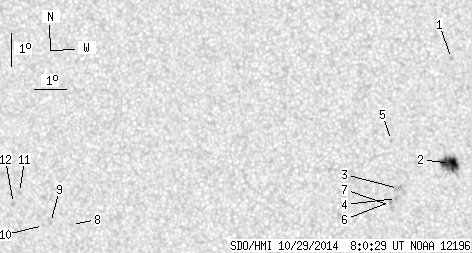

SDO HMI 2014-10-29 08:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.61 | 40.25 | 7.93 | 20.71 | -3.81 | 158.60 | -12.38 | 125.80 | 0.2608 | 548.9 | 325.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-29 08:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.65 | 0.00 | 0.83 | -0.37 | 161.16 | -9.83 | 116.84 | 0.1922 | 933.0 | 676.9 | |
| 15.61 | 24.72 | 7.93 | 12.56 | -3.52 | 161.10 | -9.88 | 129.45 | 0.2228 | 1183.1 | 610.0 | |
| 0.00 | 3.04 | 0.00 | 1.55 | -4.29 | 159.51 | -11.47 | 127.81 | 0.2522 | 724.0 | 718.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -4.60 | 159.45 | -11.54 | 128.59 | 0.2562 | 1017.0 | 813.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -2.85 | 159.32 | -11.66 | 122.56 | 0.2407 | 737.0 | 639.0 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -4.69 | 159.26 | -11.72 | 128.43 | 0.2597 | 1053.0 | 918.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -4.81 | 159.23 | -11.75 | 128.72 | 0.2614 | 434.0 | 561.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -5.61 | 149.26 | -21.72 | 115.09 | 0.4085 | -738.0 | -636.9 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -5.57 | 148.58 | -22.40 | 114.32 | 0.4180 | -798.0 | -623.5 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -5.67 | 148.35 | -22.63 | 114.31 | 0.4220 | -725.0 | -518.8 | |
| 0.00 | 2.17 | 0.00 | 1.19 | -4.69 | 147.61 | -23.37 | 111.50 | 0.4268 | -845.0 | -599.2 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -5.03 | 147.40 | -23.58 | 112.06 | 0.4318 | -783.0 | -603.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
