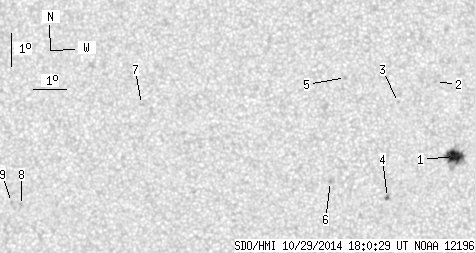

SDO HMI 2014-10-29 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.99 | 37.78 | 7.53 | 19.07 | -3.59 | 159.04 | -6.46 | 144.79 | 0.1873 | 783.7 | 349.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-29 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.38 | 26.34 | 7.22 | 13.22 | -3.58 | 161.06 | -4.44 | 151.56 | 0.1628 | 1291.2 | 541.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -1.33 | 160.50 | -4.99 | 139.96 | 0.1359 | 890.0 | 614.1 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -1.97 | 159.39 | -6.10 | 137.13 | 0.1569 | 851.0 | 676.3 | |
| 0.61 | 1.91 | 0.31 | 0.96 | -4.82 | 159.04 | -6.45 | 145.63 | 0.1993 | 1021.7 | 890.2 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -1.23 | 157.81 | -7.69 | 127.18 | 0.1686 | 789.0 | 680.7 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -4.36 | 157.33 | -8.17 | 137.67 | 0.2112 | 1013.0 | 733.5 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -2.13 | 151.62 | -13.88 | 115.69 | 0.2673 | -678.0 | -555.1 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -5.25 | 147.83 | -17.66 | 119.04 | 0.3471 | -547.0 | -527.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -5.16 | 147.52 | -17.98 | 118.40 | 0.3510 | -809.0 | -656.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
