SDO HMI 2014-10-29 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.90 | 34.67 | 7.48 | 17.50 | -3.73 | 159.10 | -5.85 | 148.31 | 0.1834 | 745.0 | 391.1 | |
|
previous
or next observation for the same group /

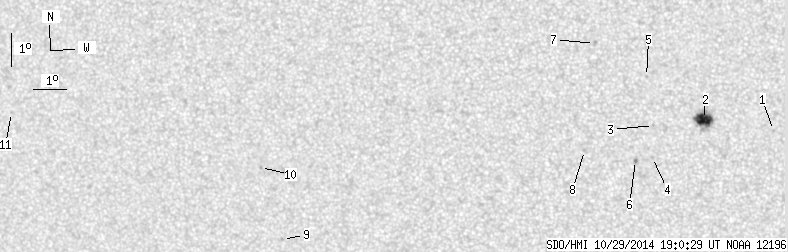

back to the solar disc SDO HMI 2014-10-29 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.43 | -3.90 | 163.14 | -1.81 | 168.01 | 0.1522 | 823.0 | 600.5 | |
| 14.90 | 22.70 | 7.48 | 11.39 | -3.57 | 161.05 | -3.90 | 154.54 | 0.1585 | 1274.7 | 551.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -3.76 | 159.55 | -5.39 | 147.20 | 0.1740 | 883.0 | 694.1 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.72 | 159.51 | -5.43 | 149.81 | 0.1885 | 817.0 | 606.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -2.29 | 159.35 | -5.59 | 140.96 | 0.1554 | 778.0 | 600.0 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -4.82 | 159.00 | -5.94 | 147.78 | 0.1944 | 1160.0 | 964.3 | |
| 0.00 | 2.51 | 0.00 | 1.26 | -1.31 | 157.80 | -7.15 | 129.61 | 0.1622 | 490.0 | 387.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -4.53 | 157.47 | -7.47 | 140.72 | 0.2057 | 879.0 | 752.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -7.37 | 148.15 | -16.80 | 125.52 | 0.3537 | -870.0 | -603.7 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -5.21 | 147.53 | -17.41 | 119.29 | 0.3432 | -787.0 | -657.1 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -3.78 | 139.58 | -25.36 | 107.95 | 0.4511 | -685.0 | -566.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
