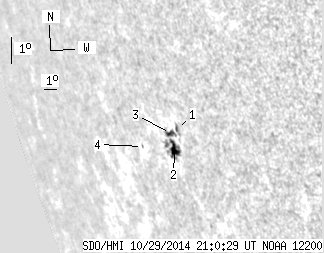

SDO HMI 2014-10-29 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.23 | 28.60 | 13.19 | 36.95 | -16.22 | 99.00 | -64.84 | 109.70 | 0.9248 | 407.4 | 129.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-29 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.38 | 0.00 | 4.23 | -15.72 | 99.64 | -64.20 | 109.33 | 0.9201 | 453.0 | 407.3 | |
| 7.80 | 18.02 | 10.07 | 23.36 | -16.40 | 99.01 | -64.83 | 109.90 | 0.9251 | 483.1 | 53.2 | |
| 2.43 | 6.33 | 3.12 | 8.12 | -15.90 | 99.03 | -64.81 | 109.37 | 0.9242 | 376.1 | 206.1 | |
| 0.00 | 0.87 | 0.00 | 1.24 | -16.50 | 96.46 | -67.38 | 109.47 | 0.9402 | -303.0 | -313.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
