SDO HMI 2014-10-29 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.04 | 36.13 | 7.03 | 18.17 | -3.96 | 159.97 | -2.77 | 165.24 | 0.1641 | 820.8 | 509.9 | |
|
previous
or next observation for the same group /

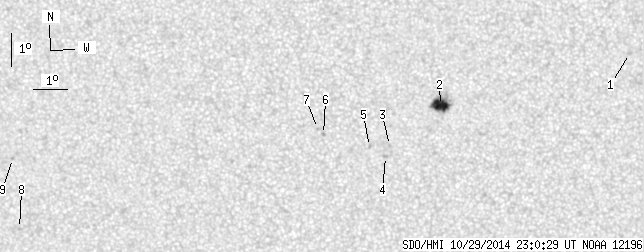

back to the solar disc SDO HMI 2014-10-29 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.87 | -2.07 | 166.68 | 3.95 | 210.63 | 0.1357 | 744.0 | 533.9 | |
| 14.04 | 24.96 | 7.03 | 12.50 | -3.61 | 161.05 | -1.69 | 168.39 | 0.1468 | 1240.9 | 629.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -4.82 | 159.52 | -3.22 | 161.16 | 0.1739 | 779.0 | 598.7 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -5.15 | 159.40 | -3.34 | 161.12 | 0.1800 | 937.0 | 698.9 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -4.85 | 158.92 | -3.82 | 158.03 | 0.1781 | 945.0 | 752.6 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -4.50 | 157.54 | -5.19 | 150.30 | 0.1829 | 1029.0 | 765.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -4.32 | 157.37 | -5.37 | 148.95 | 0.1817 | 806.0 | 677.1 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -7.46 | 148.24 | -14.50 | 129.80 | 0.3245 | -790.0 | -599.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -5.35 | 148.09 | -14.65 | 124.09 | 0.3054 | -836.0 | -672.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
