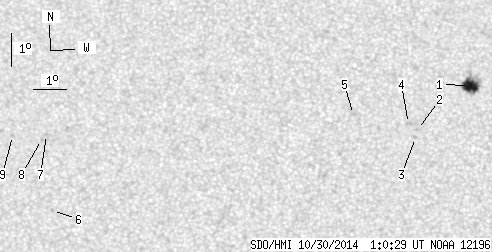

SDO HMI 2014-10-30 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.22 | 36.75 | 7.12 | 18.48 | -4.04 | 159.20 | -2.43 | 168.26 | 0.1655 | 602.1 | 392.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-30 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.22 | 26.53 | 7.12 | 13.27 | -3.59 | 161.05 | -0.58 | 175.91 | 0.1436 | 1247.3 | 575.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.92 | 159.46 | -2.17 | 167.15 | 0.1705 | 854.0 | 623.2 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -5.16 | 159.40 | -2.23 | 167.12 | 0.1748 | 911.0 | 733.0 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -4.74 | 159.19 | -2.44 | 165.35 | 0.1685 | 790.0 | 758.4 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -4.47 | 157.55 | -4.08 | 155.75 | 0.1736 | 909.0 | 682.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -7.48 | 148.37 | -13.26 | 132.35 | 0.3091 | -774.0 | -618.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -5.18 | 148.25 | -13.38 | 126.05 | 0.2864 | -964.0 | -728.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -5.33 | 148.09 | -13.54 | 126.17 | 0.2900 | -837.0 | -705.5 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -5.23 | 147.20 | -14.43 | 124.14 | 0.3012 | -666.0 | -467.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
