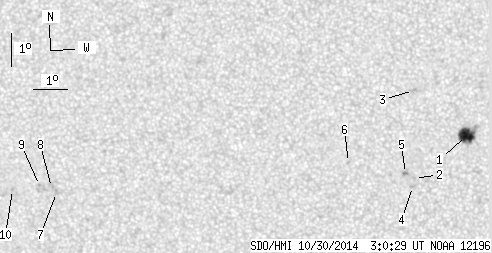

SDO HMI 2014-10-30 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.69 | 37.10 | 7.85 | 18.66 | -3.97 | 158.76 | -1.78 | 172.69 | 0.1647 | 642.4 | 314.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-30 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.69 | 22.80 | 7.85 | 11.41 | -3.61 | 161.05 | 0.52 | 183.62 | 0.1437 | 1231.4 | 573.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -4.91 | 159.50 | -1.04 | 173.77 | 0.1668 | 865.0 | 571.5 | |
| 0.00 | 2.69 | 0.00 | 1.34 | -2.26 | 159.47 | -1.06 | 171.20 | 0.1213 | 772.0 | 677.2 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -5.15 | 159.44 | -1.10 | 173.57 | 0.1710 | 749.0 | 560.2 | |
| 0.00 | 2.25 | 0.00 | 1.13 | -4.76 | 159.23 | -1.30 | 172.05 | 0.1647 | 1109.0 | 875.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -4.43 | 157.53 | -3.01 | 161.54 | 0.1659 | 885.0 | 617.9 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -5.42 | 148.71 | -11.83 | 130.15 | 0.2681 | -782.0 | -649.1 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -5.27 | 148.56 | -11.98 | 129.36 | 0.2684 | -717.0 | -786.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -5.21 | 148.19 | -12.34 | 128.36 | 0.2727 | -868.0 | -735.9 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -5.35 | 147.36 | -13.17 | 126.92 | 0.2851 | -854.0 | -636.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
