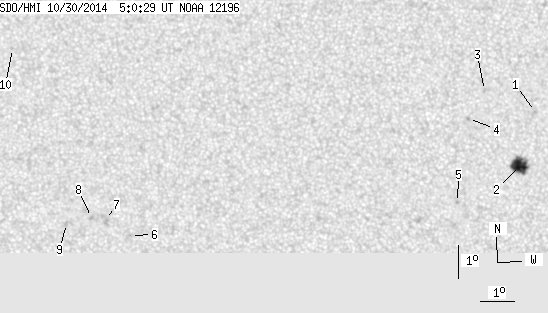

SDO HMI 2014-10-30 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.99 | 38.58 | 8.51 | 19.47 | -3.90 | 156.91 | -2.53 | 171.38 | 0.1782 | 548.2 | -45.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-30 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.48 | -2.01 | 161.54 | 2.10 | 197.70 | 0.1209 | 874.0 | 619.0 | |
| 16.99 | 22.02 | 8.51 | 11.03 | -3.63 | 161.06 | 1.62 | 191.20 | 0.1461 | 1208.4 | 752.0 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -1.38 | 160.02 | 0.58 | 185.57 | 0.1047 | 884.0 | 725.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -2.21 | 159.54 | 0.10 | 180.86 | 0.1188 | 928.0 | 833.7 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -4.74 | 159.21 | -0.23 | 178.59 | 0.1627 | 1053.0 | 895.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -5.80 | 149.37 | -10.07 | 135.80 | 0.2506 | -930.0 | -740.7 | |
| 0.00 | 5.64 | 0.00 | 2.89 | -5.32 | 148.62 | -10.82 | 132.38 | 0.2541 | -946.0 | -712.0 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -5.27 | 148.19 | -11.24 | 131.11 | 0.2589 | -922.0 | -755.0 | |
| 0.00 | 2.25 | 0.00 | 1.16 | -5.46 | 147.43 | -12.01 | 129.79 | 0.2708 | -824.0 | -660.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -0.23 | 145.84 | -13.60 | 109.14 | 0.2500 | -802.0 | -595.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
