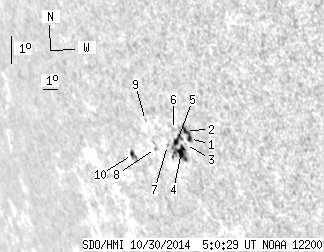

SDO HMI 2014-10-30 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.05 | 44.92 | 17.50 | 49.37 | -16.00 | 99.05 | -60.39 | 110.51 | 0.8939 | 329.9 | 111.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-30 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.82 | 33.38 | 1.92 | 36.00 | -15.74 | 100.21 | -59.23 | 110.53 | 0.8850 | 593.5 | 275.7 | |
| 2.43 | -1.00 | 2.57 | -1.00 | -15.50 | 100.08 | -59.36 | 110.23 | 0.8855 | 444.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.21 | -15.95 | 99.86 | -59.58 | 110.67 | 0.8881 | 338.0 | 381.9 | |
| 5.81 | -1.00 | 6.30 | -1.00 | -16.20 | 99.49 | -59.95 | 110.84 | 0.8913 | 611.0 | 999999 | |
| 4.34 | -1.00 | 4.70 | -1.00 | -15.86 | 99.41 | -60.03 | 110.45 | 0.8913 | 464.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 2.07 | -15.52 | 99.33 | -60.11 | 110.06 | 0.8912 | -399.0 | -286.3 | |
| 0.00 | 1.04 | 0.00 | 1.15 | -16.07 | 98.67 | -60.77 | 110.49 | 0.8971 | 169.0 | -35.0 | |
| 0.00 | 1.39 | 0.00 | 1.59 | -16.23 | 97.80 | -61.63 | 110.44 | 0.9035 | 84.0 | 64.9 | |
| 0.00 | 0.61 | 0.00 | 0.69 | -15.36 | 97.61 | -61.83 | 109.46 | 0.9034 | -214.0 | -278.0 | |
| 1.65 | 5.46 | 2.01 | 6.66 | -16.54 | 96.06 | -63.38 | 110.36 | 0.9158 | -432.1 | -393.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
