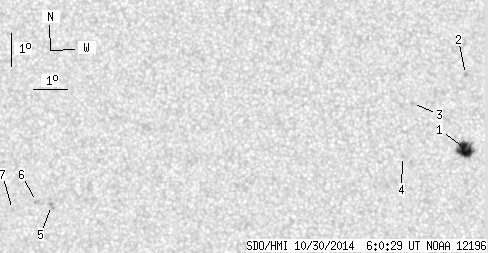

SDO HMI 2014-10-30 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.39 | 31.03 | 8.21 | 15.61 | -3.82 | 158.49 | -0.41 | 182.42 | 0.1653 | 718.3 | 122.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-30 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.39 | 21.42 | 8.21 | 10.73 | -3.64 | 161.08 | 2.19 | 194.94 | 0.1483 | 1213.2 | 749.3 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -1.39 | 161.08 | 2.18 | 200.18 | 0.1110 | 956.0 | 728.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -2.25 | 159.50 | 0.61 | 185.08 | 0.1198 | 941.0 | 678.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -3.84 | 159.20 | 0.31 | 182.09 | 0.1470 | 758.0 | 617.1 | |
| 0.00 | 3.03 | 0.00 | 1.55 | -5.38 | 148.65 | -10.24 | 134.09 | 0.2476 | -925.0 | -794.3 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -5.27 | 148.19 | -10.70 | 132.51 | 0.2519 | -853.0 | -728.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -5.52 | 147.46 | -11.43 | 131.33 | 0.2640 | -631.0 | -637.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
