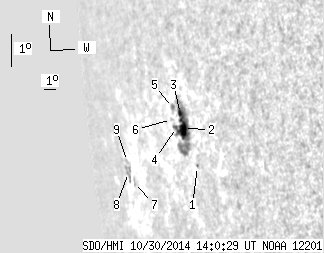

SDO HMI 2014-10-30 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.10 | 65.33 | 28.49 | 112.62 | -5.24 | 81.81 | -72.70 | 96.87 | 0.9577 | 371.9 | 76.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-30 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 1.56 | -5.94 | 84.48 | -70.04 | 97.91 | 0.9453 | -166.0 | -195.5 | |
| 13.86 | 50.60 | 21.75 | 79.60 | -4.86 | 83.50 | -71.01 | 96.67 | 0.9500 | 526.4 | 176.6 | |
| 3.03 | -2.00 | 4.77 | -2.00 | -4.42 | 83.33 | -71.19 | 96.19 | 0.9507 | 496.1 | 999999 | |
| 1.21 | -2.00 | 1.97 | -2.00 | -4.88 | 82.83 | -71.68 | 96.61 | 0.9536 | 114.9 | 999999 | |
| 0.00 | 2.77 | 0.00 | 4.54 | -4.30 | 82.59 | -71.92 | 95.97 | 0.9545 | -335.0 | -233.0 | |
| 0.00 | 0.26 | 0.00 | 0.43 | -4.68 | 82.40 | -72.12 | 96.34 | 0.9557 | -273.0 | -232.3 | |
| 0.00 | 2.08 | 0.00 | 4.93 | -6.97 | 77.23 | -77.28 | 98.13 | 0.9790 | -176.0 | -171.0 | |
| 0.00 | 6.93 | 0.00 | 17.42 | -6.73 | 76.51 | -78.00 | 97.80 | 0.9814 | -182.0 | -14.0 | |
| 0.00 | 1.65 | 0.00 | 4.14 | -6.39 | 76.55 | -77.96 | 97.47 | 0.9811 | -83.0 | -12.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
