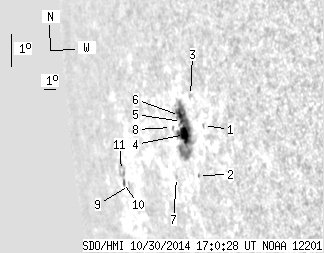

SDO HMI 2014-10-30 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.55 | 73.55 | 21.01 | 114.31 | -5.22 | 82.01 | -70.85 | 97.06 | 0.9481 | 435.3 | 153.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-30 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 1.73 | -4.55 | 85.20 | -67.66 | 96.75 | 0.9301 | -134.0 | -152.6 | |
| 0.00 | 0.78 | 0.00 | 1.09 | -6.12 | 84.42 | -68.44 | 98.31 | 0.9361 | -85.0 | -152.2 | |
| 0.00 | 1.99 | 0.00 | 2.75 | -3.72 | 84.30 | -68.56 | 95.75 | 0.9351 | 151.0 | 174.8 | |
| 10.05 | 56.56 | 14.47 | 81.56 | -4.95 | 83.55 | -69.32 | 96.96 | 0.9405 | 647.1 | 253.5 | |
| 1.30 | -4.00 | 1.88 | -4.00 | -4.57 | 83.38 | -69.49 | 96.54 | 0.9412 | 661.4 | 999999 | |
| 3.20 | -4.00 | 4.66 | -4.00 | -4.40 | 83.24 | -69.62 | 96.34 | 0.9419 | 580.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.72 | -6.33 | 82.46 | -70.40 | 98.28 | 0.9476 | -261.0 | -271.8 | |
| 0.00 | 0.35 | 0.00 | 0.53 | -4.82 | 82.43 | -70.43 | 96.69 | 0.9468 | -298.0 | -175.8 | |
| 0.00 | 1.82 | 0.00 | 3.81 | -6.96 | 77.32 | -75.55 | 98.31 | 0.9725 | -169.0 | -207.1 | |
| 0.00 | 2.43 | 0.00 | 5.31 | -6.93 | 76.58 | -76.28 | 98.19 | 0.9754 | 163.0 | 1.1 | |
| 0.00 | 7.19 | 0.00 | 15.81 | -6.57 | 76.50 | -76.36 | 97.82 | 0.9755 | -47.0 | 17.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
