SDO HMI 2014-10-30 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.28 | 46.60 | 14.07 | 41.08 | -15.92 | 99.85 | -52.46 | 112.75 | 0.8287 | 368.8 | 144.5 | |
|
previous
or next observation for the same group /

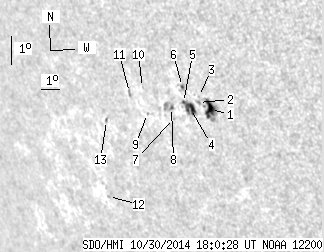

back to the solar disc SDO HMI 2014-10-30 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.83 | 17.84 | 7.55 | 15.25 | -15.85 | 101.16 | -51.15 | 113.12 | 0.8168 | 719.2 | 423.2 | |
| 0.00 | 1.30 | 0.00 | 1.12 | -15.66 | 100.63 | -51.68 | 112.72 | 0.8212 | 470.0 | 414.4 | |
| 0.00 | 0.69 | 0.00 | 0.60 | -15.47 | 100.70 | -51.61 | 112.52 | 0.8200 | 168.0 | 250.4 | |
| 6.15 | 12.47 | 5.38 | 10.91 | -15.88 | 100.15 | -52.16 | 112.81 | 0.8262 | 598.2 | 449.1 | |
| 0.26 | -4.00 | 0.23 | -4.00 | -15.71 | 99.85 | -52.46 | 112.51 | 0.8284 | 532.0 | 999999 | |
| 0.52 | 1.65 | 0.45 | 1.44 | -15.20 | 99.99 | -52.32 | 111.96 | 0.8257 | 256.0 | 246.0 | |
| 0.00 | 0.69 | 0.00 | 0.62 | -16.26 | 99.13 | -53.18 | 112.90 | 0.8364 | 135.0 | 185.4 | |
| 0.52 | 5.98 | 0.46 | 5.37 | -15.91 | 99.16 | -53.15 | 112.51 | 0.8352 | 192.0 | -197.0 | |
| 0.00 | 0.87 | 0.00 | 0.80 | -16.19 | 97.78 | -54.53 | 112.38 | 0.8479 | 313.0 | 275.6 | |
| 0.00 | 0.43 | 0.00 | 0.40 | -15.37 | 97.84 | -54.47 | 111.46 | 0.8453 | -476.0 | -482.8 | |
| 0.00 | 2.34 | 0.00 | 2.20 | -15.58 | 97.06 | -55.25 | 111.46 | 0.8525 | -445.0 | -332.1 | |
| 0.00 | 0.87 | 0.00 | 0.91 | -19.08 | 94.17 | -58.14 | 114.47 | 0.8839 | -437.0 | -439.4 | |
| 0.00 | 1.47 | 0.00 | 1.46 | -16.58 | 95.33 | -56.98 | 112.06 | 0.8691 | -437.0 | -438.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
