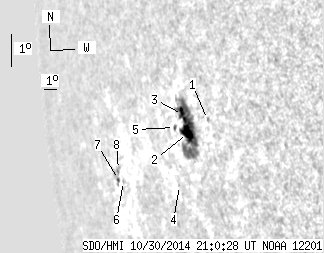

SDO HMI 2014-10-30 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.10 | 81.95 | 24.04 | 111.15 | -5.05 | 82.61 | -68.04 | 97.23 | 0.9320 | 507.9 | 195.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-30 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 1.68 | -4.42 | 85.22 | -65.43 | 96.89 | 0.9151 | -294.0 | -248.4 | |
| 11.26 | 70.07 | 14.65 | 91.08 | -4.96 | 83.62 | -67.03 | 97.26 | 0.9263 | 710.7 | 278.3 | |
| 5.54 | -2.00 | 7.27 | -2.00 | -4.41 | 83.34 | -67.31 | 96.63 | 0.9277 | 648.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.36 | -6.61 | 82.57 | -68.08 | 98.88 | 0.9343 | -170.0 | -186.3 | |
| 0.61 | 1.91 | 0.82 | 2.58 | -4.85 | 82.61 | -68.04 | 97.02 | 0.9327 | 129.7 | -5.5 | |
| 0.00 | 1.39 | 0.00 | 2.50 | -6.88 | 77.32 | -73.34 | 98.49 | 0.9629 | -138.0 | -184.5 | |
| 0.69 | 3.55 | 1.30 | 6.69 | -6.86 | 76.78 | -73.87 | 98.40 | 0.9653 | -118.8 | 34.7 | |
| 0.00 | 3.38 | 0.00 | 6.26 | -6.55 | 76.91 | -73.74 | 98.09 | 0.9645 | -238.0 | -238.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
