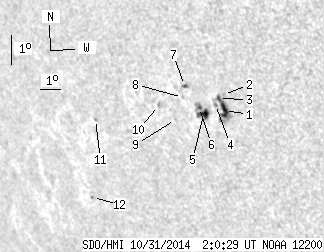

SDO HMI 2014-10-31 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.51 | 44.81 | 12.10 | 35.32 | -15.93 | 100.60 | -47.29 | 114.69 | 0.7796 | 475.5 | 349.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.50 | 20.02 | 5.02 | 15.47 | -15.86 | 101.63 | -46.26 | 115.03 | 0.7694 | 889.5 | 574.6 | |
| 0.00 | 1.04 | 0.00 | 0.80 | -15.35 | 101.74 | -46.16 | 114.45 | 0.7663 | 322.0 | 282.8 | |
| 1.39 | -1.00 | 1.07 | -1.00 | -15.49 | 101.47 | -46.42 | 114.51 | 0.7696 | 736.4 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.48 | -15.69 | 101.28 | -46.62 | 114.67 | 0.7723 | 531.0 | 432.5 | |
| 5.89 | 13.95 | 4.64 | 11.00 | -16.04 | 100.62 | -47.27 | 114.83 | 0.7802 | 692.8 | 469.9 | |
| 1.04 | -5.00 | 0.82 | -5.00 | -15.83 | 100.51 | -47.39 | 114.52 | 0.7806 | 691.8 | 999999 | |
| 0.69 | 2.43 | 0.55 | 1.92 | -15.16 | 100.02 | -47.88 | 113.52 | 0.7830 | 584.9 | 413.7 | |
| 0.00 | 1.04 | 0.00 | 0.83 | -15.55 | 99.81 | -48.09 | 113.91 | 0.7865 | 222.0 | 123.1 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -16.28 | 99.24 | -48.65 | 114.56 | 0.7945 | 292.0 | 254.9 | |
| 0.00 | 1.30 | 0.00 | 1.07 | -15.88 | 98.57 | -49.33 | 113.82 | 0.7996 | -520.0 | -435.7 | |
| 0.00 | 1.39 | 0.00 | 1.23 | -16.53 | 95.21 | -52.68 | 113.36 | 0.8327 | -497.0 | -475.1 | |
| 0.00 | 0.95 | 0.00 | 0.89 | -19.11 | 93.93 | -53.97 | 115.83 | 0.8511 | -625.0 | -582.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
