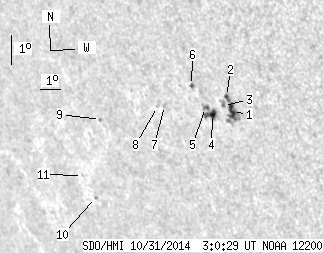

SDO HMI 2014-10-31 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.66 | 44.10 | 9.73 | 34.45 | -15.98 | 100.59 | -46.76 | 114.99 | 0.7744 | 439.3 | 369.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.85 | 20.97 | 5.23 | 16.02 | -15.89 | 101.70 | -45.65 | 115.34 | 0.7632 | 874.0 | 562.4 | |
| 0.87 | -1.00 | 0.66 | -1.00 | -15.42 | 101.57 | -45.78 | 114.70 | 0.7627 | 701.0 | 999999 | |
| 0.35 | 3.29 | 0.27 | 2.53 | -15.72 | 101.35 | -46.00 | 114.97 | 0.7661 | 504.5 | 474.3 | |
| 3.90 | 9.01 | 3.03 | 7.02 | -16.04 | 100.76 | -46.59 | 115.11 | 0.7733 | 759.7 | 476.9 | |
| 0.00 | 3.38 | 0.00 | 2.64 | -15.83 | 100.50 | -46.84 | 114.75 | 0.7751 | 621.0 | 536.2 | |
| 0.69 | 1.56 | 0.54 | 1.22 | -15.16 | 100.07 | -47.28 | 113.75 | 0.7770 | 583.8 | 510.3 | |
| 0.00 | 1.82 | 0.00 | 1.48 | -15.88 | 98.59 | -48.76 | 114.03 | 0.7941 | -565.0 | -401.6 | |
| 0.00 | 1.56 | 0.00 | 1.27 | -15.94 | 98.24 | -49.11 | 113.96 | 0.7977 | 356.0 | 243.2 | |
| 0.00 | 1.21 | 0.00 | 1.07 | -16.53 | 95.22 | -52.12 | 113.55 | 0.8276 | -434.0 | -428.2 | |
| 0.00 | 1.04 | 0.00 | 0.96 | -19.11 | 93.86 | -53.49 | 116.00 | 0.8471 | -576.0 | -527.2 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -18.43 | 93.48 | -53.87 | 115.10 | 0.8483 | -344.0 | -268.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
