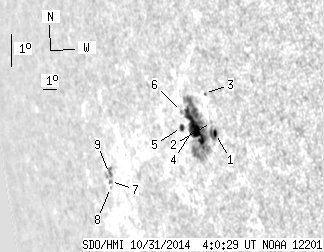

SDO HMI 2014-10-31 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.72 | 102.70 | 31.11 | 117.06 | -4.94 | 83.09 | -63.70 | 97.67 | 0.9024 | 447.2 | 205.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 88.31 | 2.22 | 97.94 | -4.84 | 85.07 | -61.73 | 97.86 | 0.8878 | -320.0 | 261.8 | |
| 0.00 | 1.13 | 0.00 | 1.21 | -4.53 | 84.86 | -61.94 | 97.47 | 0.8891 | 197.0 | 178.9 | |
| 0.00 | 1.04 | 0.00 | 1.12 | -3.68 | 84.53 | -62.27 | 96.48 | 0.8909 | 503.0 | 408.2 | |
| 23.48 | -1.00 | 26.24 | -1.00 | -4.76 | 83.71 | -63.08 | 97.56 | 0.8982 | 630.8 | 999999 | |
| 1.73 | 3.21 | 2.00 | 3.69 | -4.82 | 82.82 | -63.97 | 97.50 | 0.9050 | 144.8 | -5.2 | |
| 0.00 | 1.30 | 0.00 | 1.49 | -4.33 | 82.91 | -63.89 | 96.98 | 0.9039 | -296.0 | -257.7 | |
| 0.43 | 1.65 | 0.65 | 2.48 | -6.89 | 76.81 | -69.99 | 98.90 | 0.9457 | -305.4 | -160.8 | |
| 0.00 | 0.43 | 0.00 | 0.66 | -7.07 | 76.74 | -70.06 | 99.09 | 0.9462 | -2.0 | -1.6 | |
| 0.00 | 5.63 | 0.00 | 8.47 | -6.65 | 76.80 | -70.00 | 98.65 | 0.9456 | -188.0 | -65.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
