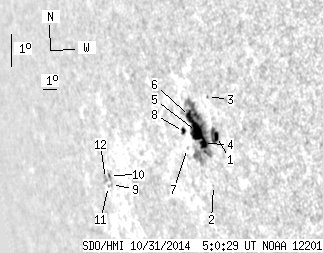

SDO HMI 2014-10-31 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.98 | 100.97 | 32.94 | 112.43 | -4.94 | 83.21 | -63.04 | 97.77 | 0.8975 | 467.3 | 190.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 89.61 | 2.37 | 97.45 | -4.84 | 85.02 | -61.23 | 97.93 | 0.8838 | -341.7 | 205.7 | |
| 0.00 | 0.26 | 0.00 | 0.28 | -6.36 | 84.55 | -61.70 | 99.54 | 0.8893 | 232.0 | 289.0 | |
| 0.00 | 0.78 | 0.00 | 0.83 | -3.67 | 84.62 | -61.63 | 96.55 | 0.8858 | 364.0 | 416.2 | |
| 5.03 | -1.00 | 5.44 | -1.00 | -5.12 | 84.15 | -62.10 | 98.10 | 0.8910 | 709.1 | 999999 | |
| 15.77 | -1.00 | 17.26 | -1.00 | -4.78 | 83.75 | -62.50 | 97.67 | 0.8938 | 670.9 | 999999 | |
| 4.77 | -1.00 | 5.28 | -1.00 | -4.36 | 83.36 | -62.89 | 97.14 | 0.8964 | 485.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.07 | -5.34 | 83.06 | -63.19 | 98.19 | 0.8997 | 203.0 | 135.6 | |
| 1.73 | 2.86 | 1.96 | 3.23 | -4.84 | 82.88 | -63.37 | 97.61 | 0.9005 | 136.0 | -6.1 | |
| 0.00 | 0.61 | 0.00 | 0.88 | -6.87 | 76.95 | -69.30 | 98.97 | 0.9417 | -391.0 | -373.1 | |
| 0.43 | 1.82 | 0.63 | 2.65 | -6.60 | 76.87 | -69.38 | 98.68 | 0.9420 | -182.2 | -329.9 | |
| 0.00 | 0.61 | 0.00 | 0.89 | -6.95 | 76.67 | -69.58 | 99.02 | 0.9434 | 58.0 | -51.1 | |
| 0.00 | 3.47 | 0.00 | 5.15 | -6.72 | 76.48 | -69.77 | 98.76 | 0.9443 | 388.0 | 351.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
