SDO HMI 2014-10-31 08:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.85 | 40.29 | 5.03 | 29.81 | -16.11 | 100.80 | -43.81 | 116.43 | 0.7446 | 434.5 | 499.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 08:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

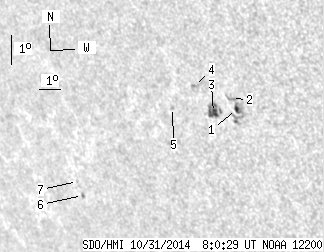

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 16.20 | 1.38 | 11.76 | -15.95 | 101.85 | -42.76 | 116.73 | 0.7333 | 893.6 | 622.6 | |
| 0.00 | 4.16 | 0.00 | 3.02 | -15.61 | 101.73 | -42.88 | 116.24 | 0.7330 | 794.0 | 663.1 | |
| 4.94 | 13.95 | 3.65 | 10.30 | -16.10 | 100.83 | -43.78 | 116.42 | 0.7447 | 613.6 | 527.6 | |
| 0.00 | 2.51 | 0.00 | 1.87 | -15.28 | 100.23 | -44.38 | 115.12 | 0.7475 | 597.0 | 417.0 | |
| 0.00 | 1.47 | 0.00 | 1.12 | -16.04 | 99.05 | -45.56 | 115.53 | 0.7628 | 546.0 | 408.9 | |
| 0.00 | 1.39 | 0.00 | 1.21 | -19.17 | 93.68 | -50.93 | 117.00 | 0.8252 | -562.0 | -499.2 | |
| 0.00 | 0.61 | 0.00 | 0.53 | -18.72 | 93.62 | -50.99 | 116.46 | 0.8242 | -490.0 | -420.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
