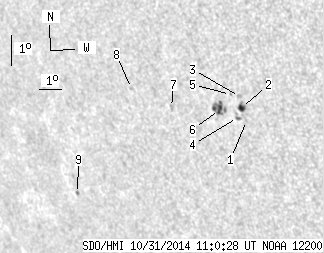

SDO HMI 2014-10-31 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 30.77 | 4.07 | 22.23 | -16.24 | 100.60 | -42.38 | 117.31 | 0.7299 | 463.3 | 416.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.43 | -16.39 | 102.11 | -40.86 | 118.28 | 0.7150 | 268.0 | 234.4 | |
| 2.95 | 5.72 | 2.08 | 4.03 | -15.99 | 102.01 | -40.97 | 117.70 | 0.7142 | 844.8 | 719.8 | |
| 0.00 | 1.65 | 0.00 | 1.16 | -15.64 | 102.01 | -40.96 | 117.25 | 0.7124 | 794.0 | 708.9 | |
| 0.00 | 2.86 | 0.00 | 2.03 | -16.32 | 101.76 | -41.22 | 117.99 | 0.7184 | 499.0 | 473.2 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -15.60 | 101.65 | -41.32 | 117.00 | 0.7161 | 613.0 | 486.6 | |
| 2.77 | 13.34 | 1.99 | 9.55 | -16.10 | 101.07 | -41.91 | 117.35 | 0.7248 | 707.0 | 538.7 | |
| 0.00 | 3.21 | 0.00 | 2.38 | -16.15 | 99.01 | -43.96 | 116.39 | 0.7467 | 590.0 | 328.5 | |
| 0.00 | 1.04 | 0.00 | 0.79 | -15.64 | 97.41 | -45.56 | 115.02 | 0.7611 | -284.0 | -328.7 | |
| 0.00 | 1.56 | 0.00 | 1.31 | -19.20 | 93.67 | -49.30 | 117.69 | 0.8108 | -515.0 | -443.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
