SDO HMI 2014-10-31 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.22 | 31.35 | 5.79 | 22.40 | -16.30 | 100.80 | -41.62 | 117.78 | 0.7220 | 433.4 | 428.1 | |
|
previous
or next observation for the same group /

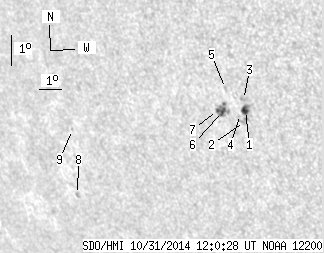

back to the solar disc SDO HMI 2014-10-31 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.81 | 6.67 | 2.66 | 4.66 | -16.02 | 102.07 | -40.36 | 118.06 | 0.7077 | 867.6 | 653.9 | |
| 0.00 | 5.28 | 0.00 | 3.71 | -16.37 | 101.94 | -40.49 | 118.45 | 0.7109 | 588.0 | 502.7 | |
| 0.00 | 2.60 | 0.00 | 1.81 | -15.67 | 102.07 | -40.35 | 117.61 | 0.7059 | 747.0 | 646.9 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -16.16 | 101.83 | -40.59 | 118.11 | 0.7110 | 103.0 | 277.3 | |
| 0.00 | 1.73 | 0.00 | 1.22 | -15.36 | 101.41 | -41.01 | 116.85 | 0.7116 | 533.0 | 407.1 | |
| 3.20 | 11.87 | 2.27 | 8.42 | -16.10 | 101.10 | -41.32 | 117.65 | 0.7185 | 686.1 | 595.8 | |
| 1.21 | -6.00 | 0.86 | -6.00 | -16.08 | 100.90 | -41.52 | 117.52 | 0.7206 | 488.9 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.66 | -19.17 | 93.67 | -48.75 | 117.87 | 0.8056 | -676.0 | -452.1 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -17.05 | 94.23 | -48.20 | 115.62 | 0.7926 | -471.0 | -410.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
