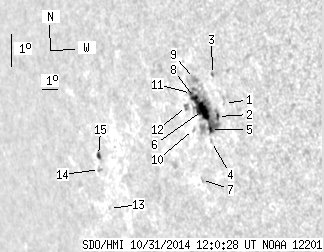

SDO HMI 2014-10-31 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.64 | 87.65 | 25.20 | 86.14 | -4.86 | 83.28 | -59.14 | 98.25 | 0.8657 | 387.0 | 251.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.89 | -4.41 | 85.23 | -57.20 | 98.05 | 0.8485 | 129.0 | 150.0 | |
| 1.65 | 68.25 | 1.55 | 65.65 | -4.83 | 84.78 | -57.65 | 98.46 | 0.8531 | -251.6 | 347.3 | |
| 0.00 | 1.39 | 0.00 | 1.31 | -3.58 | 84.65 | -57.78 | 96.98 | 0.8527 | 225.0 | 332.2 | |
| 0.00 | 1.21 | 0.00 | 1.16 | -5.61 | 84.32 | -58.10 | 99.29 | 0.8582 | 334.0 | 324.2 | |
| 1.73 | -2.00 | 1.66 | -2.00 | -5.25 | 84.32 | -58.10 | 98.88 | 0.8577 | 682.3 | 999999 | |
| 16.46 | -2.00 | 15.89 | -2.00 | -4.71 | 83.94 | -58.48 | 98.18 | 0.8604 | 691.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.85 | -6.82 | 83.53 | -58.90 | 100.53 | 0.8668 | -558.0 | -509.7 | |
| 3.12 | -2.00 | 3.04 | -2.00 | -4.34 | 83.53 | -58.90 | 97.70 | 0.8636 | 483.6 | 999999 | |
| 0.00 | 4.33 | 0.00 | 4.21 | -3.77 | 83.60 | -58.83 | 97.04 | 0.8623 | 208.0 | 187.4 | |
| 0.00 | 0.95 | 0.00 | 0.94 | -5.32 | 83.33 | -59.10 | 98.78 | 0.8665 | 347.0 | 219.4 | |
| 0.95 | -2.00 | 0.93 | -2.00 | -4.23 | 83.37 | -59.06 | 97.54 | 0.8649 | 368.9 | 999999 | |
| 0.00 | 3.46 | 0.00 | 3.44 | -4.65 | 83.02 | -59.41 | 97.97 | 0.8684 | 275.0 | 136.5 | |
| 0.00 | 0.78 | 0.00 | 0.96 | -8.13 | 77.24 | -65.18 | 100.91 | 0.9168 | -299.0 | -243.0 | |
| 0.00 | 2.34 | 0.00 | 2.89 | -6.97 | 76.86 | -65.57 | 99.60 | 0.9183 | -441.0 | -288.1 | |
| 1.73 | 3.12 | 2.13 | 3.84 | -6.55 | 76.90 | -65.53 | 99.15 | 0.9176 | -247.1 | -234.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
